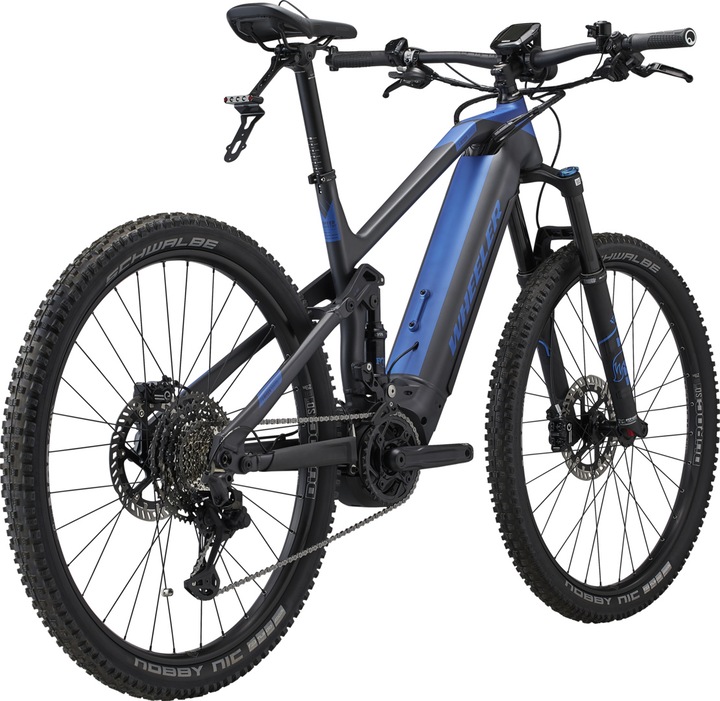

The bikes in the i-SPEED series are aimed at frequent riders for whom 25 km/hn is not enough. These S-pedelecs are approved for 45 km/h. The powerful Yamaha PW-X2 45 motor is used and provides up to 80 Newton metres of torque. Whether for asphalt or unpaved roads, Wheeler has the right projectile for everyone. Whether for daily commuting or for lovers of extensive tours. The bikes are equipped with reinforced E-MTB parts and 4-piston brakes to cope with the higher load. The good equipment also ensures increased riding fun.
Number of gears | 11 x |
Braking system | Hydraulic |
Weight | 24 kg |
E-bike type | Electric mountain bike |
Item number | 25305408 |
Manufacturer | Wheeler |
Category | Electric bikes |
Release date | 25.4.2023 |
Sales rank in Category Electric bikes | 9 of 666 |
Colour | Blue |
Exact colour description | Blue |
Target group | Men, Women |
E-bike type | Electric mountain bike |
Max. load | 150 kg |
Number of gears | 11 x |
Model year | 2022 |
Motor position | Mid-engine |
Electric motor brand | Yamaha |
Power | 450 W |
Max. torque | 80 Nm |
Max. range | 120 km |
Pedal assistance | Up to 45 km/h |
Battery category | Device batteries |
Battery size | Device specific |
Power capacity | 600 Wh |
Capacity | 16.20 Ah |
Voltage | 37 V |
Items per sales unit | 1 x |
Frame size e-bike | 180-189 cm = L |
Frame size | L |
Frame material | Aluminium |
Frame shape | Hardtail |
Fork model | 15x110mm axle, Conical, Fox 34 Float Rhythm 29"/27.5"+, Grip, Suspension travel: 140mm, Sweep Adjust |
Stem model | 1 1/8", ANGLE:6°, BARBORE: 31.8mm, Levelnine Race |
Handlebar model | 15mm rise, 31.8 mm, 9°ANGLE, LEVELNINE RACE RISER BAR 780mm |
Seatpost model | 31.6 mm, PROMAX SP-2028TLA, WITH REAR LIGHT MOUNT |
Saddle model | Ergon SM10 E-Mountain |
Bicycle damper model | 27.5"+, FOX 34 FLOAT RHYTHM 29" |
Travel rear shock | 140 mm |
Suspension fork model | 15x110mm axle, Conical, Fox 34 Float Rhythm 29"/27.5"+, Grip, Suspension travel: 140mm, Sweep Adjust |
Suspension travel suspension fork | 140 mm |
Gearshift model | CLAMP TYPE, DIRECT ATTACH TO BRAKE LEVER, SHIMANO XT SL-M8130 |
Rear derailleur model | 11-speed, SHIMANO XT RD-M8130 SGS SHADOW PLUS DESIGN |
Drive type | Derailleur gears |
Cassette model | 11-50 THEETH, Shimano CS-LG600, Sram 11 Speed |
Number of pinions | 50 x |
Chain model | SHIMANO CN-LG500 11-SPEED |
Crankset model | 11-speed, SHIMANO XT RD-M8130 SGS SHADOW PLUS DESIGN |
Number of chainrings | 11 x |
Bottom bracket model | 12x148mm BOOST, 32 HOLES, Boost Thru Axle, SUNRINGLE WHEELSET DUROC 37SD COMP |
Pedal model | ERGON SM10 E-MOUNTAIN SPORT MEN |
Braking system | Hydraulic |
Brake model | 4-PISTON HYDRAULIC DISC BRAKE, MAGURA MT5 eSTOP, R:203mm, ROTORS F:203mm |
Wheel diameter | 29" |
Wheel model | 29" |
Hub Model | 12x148mm BOOST, 32 HOLES, Boost Thru Axle, SUNRINGLE WHEELSET DUROC 37SD COMP |
Rim model | ALLOY 6061 D.B. |
Taillight model | Supernova |
Country of origin | Taiwan |
CO₂-Emission | |
Climate contribution |
Weight | 24 kg |
Length | 200 cm |
Width | 150 cm |
Height | 50 cm |
Weight | 25 kg |
