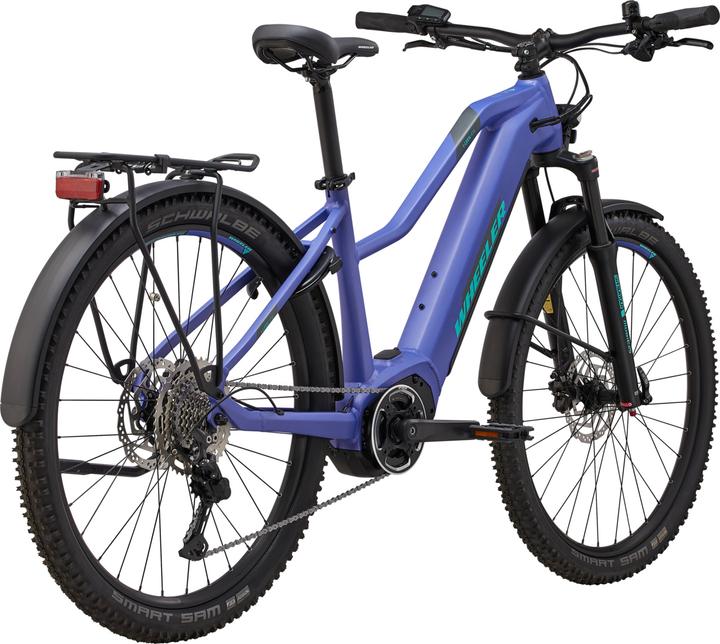

Wheeler i-LEEN ATB

Ratings
BrandMore from Wheeler
Currently out of stock
Free shipping starting at 50.–

Product details

The i-Leen models have their own frame platform with deep-drawn top tubes for more freedom of movement. All bikes are equipped with 27.5-inch wheels.

Key specifications

E-bike type
Electric mountain bike
Number of gears
10x
Item number
25305374

General information

Manufacturer
Wheeler
Category
Electric bikes
Release date
25.4.2023

Colour

Colour
Violet
Exact colour description
Lilac, Mint

Target group

Target group
Women

Bike properties

E-bike type
Electric mountain bike
Max. load
130 kg
Number of gears
10x
Model year
2022

Engine properties

Electric motor brand
Yamaha
Electric motor model
PW-ST SERIES
Max. range
125 km
Pedal assistance
Up to 25 km/h

Battery properties

Battery category
Device batteries
Battery size
Device specific
Power capacity
500 Wh
Capacity
13.50 Ah
Voltage
37 V
Items per sales unit
1x

Bike frame properties

Frame size e-bike
155-164 cm = S
Frame size
S
Frame material
Aluminium

Fork properties

Fork model
100mm TRAVEL, 15x100mm AXLE, lockout, SUNTOUR MOBIE 25 AIR 27.5"

Stem properties

Stem model
31.8mm clamp, 7°ANGLE, WHEELER AS-DC1

Handlebar properties

Handlebar model
15mm rise, 31.8 mm, 760mm, 9°ANGLE, WHEELER HB-RB12 RIZER BAR

Seatpost properties

Seatpost model
31.6 mm, 350mm, WHEELER SP-DC1

Saddle properties

Saddle model
WHEELER VL-3539

Properties rear shock

Bicycle damper model
15x100mm AXLE, lockout, SUNTOUR MOBIE 25 AIR 27.5", tapered steerer
Travel rear shock
100 mm

Suspension properties

Suspension fork model
100mm HUB, 15x100mm axle, Conical, lockout, SUNTOUR MOBIE 25 AIR 27.5"
Suspension travel suspension fork
100 mm

Shift lever features

Gearshift model
Shimano Deore SL-M4100-IR

Gear properties

Rear derailleur model
10-speed, SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN
Crank model
32 TEETH, CHAIN GUARD, FSA CK-220/SQUARE TYPE

Cassette properties

Cassette model
11-46T, SHIMANO CS-M4100, Sram 10 Speed

Chain properties

Chain model
KMC E10S EPT

Crankset features

Crankset model
32 TEETH, FSA CK-220/SQUARE TYPE, w/Chainguard

Bottom Bracket Features

Bottom bracket model
15x100mm THRU AXLE, 32 HOLES, SHIMANO FH-TX505-8

Pedal properties

Pedal model
VPE-857

Brake properties

Brake model
F:180mm, HYDRAULIC DISC BRAKE WITH RESIN PADS, R:180mm ROTORS, Shimano BR-MT200

Wheel properties

Wheel diameter
27.50"
Hub Model
32 HOLES, QR, SHIMANO FH-TX505-8

Lighting properties

Taillight model
Herrmans H-Track

Origin

Country of origin
Taiwan
