Product details

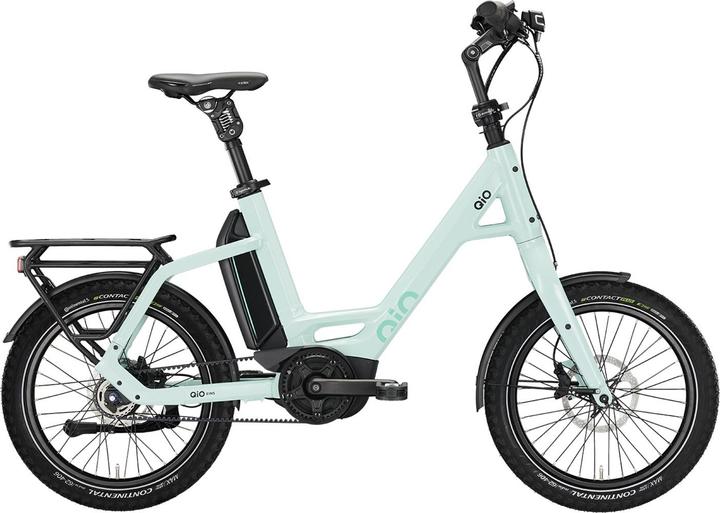

For those who want to navigate their daily life by bike, perhaps even considering replacing their car with an e-bike or simply looking to try something new, QIO's "EINS AP-8" is the perfect choice. This e-compact bike impresses with its space-saving size and several practical features that can be efficiently integrated into everyday life.
Practical and comfortable, the day starts as soon as you leave your home. The "EINS AP-8" is equipped with a carrying handle on its low step-through frame, allowing you to easily pick it up and carry it outside. Just quickly adjust the seat post and stem using the tool-free quick-release, click the panniers onto the MIK HD system rack, and you're ready to go.
With its 20'' wheels, the e-bike can be maneuvered nimbly and agilely through narrow city streets. Prefer to avoid cobblestones? You don’t have to—the CONTINENTAL tires, 62 mm wide, absorb bumps with ease. The BY.SCHULZ seat post is equipped with theft protection.
Always on board is the BOSCH "Active Line Plus" motor, which smoothly propels you up to 25 km/h. It draws its energy from the 500 Wh "PowerPack." The battery can be easily removed from its convenient position on the seat stays for charging. For fine-tuning the drive, the 8-speed SHIMANO "Nexus" hub gear is available, which is also particularly low-maintenance.
In the evening, you can return home safely thanks to the bright LED headlight and rear light with stop light function. The "EINS AP-8" can be stored just as easily as you prepared it for departure in the morning. The stem can be rotated 90° thanks to the "Speedlifter Twist" function, and the pedals can be folded up—all designed to take up as little space as possible.
E-bike type | E-Citybike |
Number of gears | 8x |
Frame material | Aluminium |
Braking system | Hydraulic |
Weight | 26.35 kg |
Item number | 22491469 |
Manufacturer | QiO |
Category | Electric bikes |
Release date | 16.9.2022 |
Colour | Green |
Exact colour description | Soft mint |
Target group | Men, Women |
E-bike type | E-Citybike |
Max. load | 140 kg |
Recommended height | 140 cm, 141 cm, 142 cm, 143 cm, 144 cm, 145 cm, 146 cm, 147 cm, 148 cm, 149 cm, 150 cm, 151 cm, 152 cm, 153 cm, 154 cm, 155 cm, 156 cm, 157 cm, 158 cm, 159 cm, 160 cm, 161 cm, 162 cm, 163 cm, 164 cm, 165 cm, 166 cm, 167 cm, 168 cm, 169 cm, 170 cm, 171 cm, 172 cm, 173 cm, 174 cm, 175 cm, 176 cm, 177 cm, 178 cm, 179 cm, 180 cm, 181 cm, 182 cm, 183 cm, 184 cm, 185 cm, 186 cm, 187 cm, 188 cm, 189 cm, 190 cm, 191 cm, 192 cm, 193 cm, 194 cm, 195 cm, 196 cm, 197 cm, 198 cm, 199 cm, 200 cm, 201 cm, 202 cm, 203 cm, 204 cm, 205 cm, 206 cm, 207 cm, 208 cm, 209 cm, 210 cm |
Number of gears | 8x |
Suspension system | no suspension |
Model year | 2023 |
Motor position | Mid-engine |
Number of power levels | 5x |
Electric motor brand | Bosch |
Electric motor model | Active line |
Power | 250 W |
Max. torque | 65 Nm |
Max. range | 100 km |
Pedal assistance | Up to 25 km/h |
Battery | Rechargeable battery |
Battery type | Li-ion |
Power capacity | 500 Wh |
Capacity | 4 Ah |
Voltage | 36 V |
Additional properties | Charge level indicator |
Display | LCD display |
Frame height | 47 cm |
Frame size | One size |
Frame material | Aluminium |
Frame shape | Depth beginners |
Fork model | Alu 7005 Disc |
Stem model | bySchulz SDS Pro 70mm |
Handlebar model | Ergotec Lady Town Level 4 |
Seatpost model | Byschulz SDS 70mm |
Saddle model | Selle Royal Nuvola 5060 |
Suspension fork model | Alu |
Gearshift model | Shimano Nexus 8 |
Gearshift type | Thumb / index finger shifter |
Rear derailleur model | Shimano Nexus, 8 speed |
Drive type | Hub gear |
Crank model | Stronglight Magan |
Chain model | KMC |
Pedal model | SELLE ROYAL "Nuvola 5060" |
Braking system | Hydraulic |
Brake model | 180/160mm, TRP HD-EU817 |
Wheel diameter | 20" |
Hub Model | Shimano |
Tire model | CONTEC "TL-335" Stop |
Headlight model | Contec DLUX 80E+ |
Scope of delivery | Treadle |
Weight | 26.35 kg |
