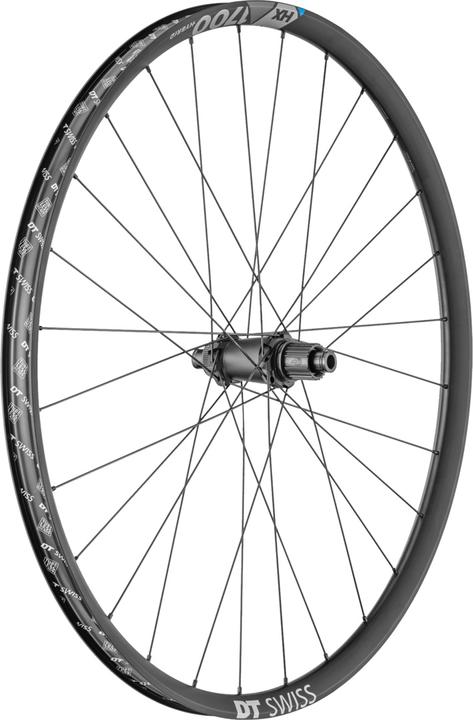

DT Swiss roue HX 1700 SPLINE

Rear wheel, 29"
was CHF409.–
2Ratings
BrandMore from DT Swiss
Delivered between Mon, 19.5. and Tue, 20.5.
Only 4 items in stock at supplier

Product details

HX 1700 SPLINE® is a reliable partner for demanding eMTB tours, thanks to specific components with proven technology. eMTBs are designed to ascend and descend mountains quickly while having fun. The new HX 1700 SPLINE high-end aluminum wheelset is the ideal companion for this purpose. Building on many years of experience in developing eMTB components and targeted testing procedures, DT Swiss has revamped this wheelset to meet the increased demands of modern E-Mountain Biking. The newly designed 350 hub features a larger hub body, allowing for better braking and driving torque, resulting in greater robustness. The new hub is now combined with a high-quality welded aluminum rim and reinforced hybrid spokes. This wheelset is available in two widths and two wheel sizes, making it suitable for all riders looking to expand their eMTB adventures.

Key specifications

BIke wheel type
Rear wheel
Ability brake type
Disc brake Center lock
Suitable tyre type
Tubeless tire
Width
35 mm
jaw width
30 mm
Axle system
HR 12x148 mm
Weight
1145 g
Item number
23489390

General information

Manufacturer
DT Swiss
Category
Wheels
Manufacturer no.
WHX1700TED3SA18399
Release date
13.12.2022

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Wheel properties

Bike area of use
Electric bike, Mountain bike
Wheel size
29"

Wheel properties

BIke wheel type
Rear wheel
Ability brake type
Disc brake Center lock
Max. load
150 kg

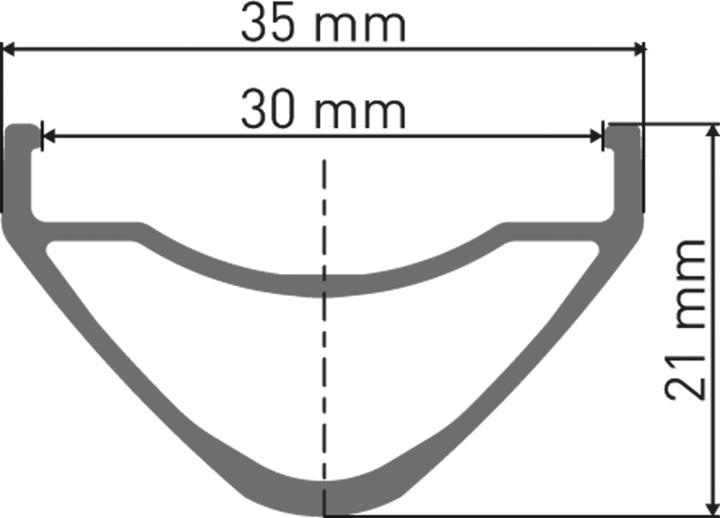

Rim properties

Rim model
HX 1700 SPLINE
Material rim
Aluminium
Rim height
21 mm
Number of holes
28 x
Suitable tyre type
Tubeless tire
Width
35 mm
jaw width
30 mm

Hub + freewheel Features

Axle system
HR 12x148 mm
Axis standard
Thru axle
Installation width front
148 mm
Installation width rear
148 mm
Diameter axle front
12 mm
Diameter rear axle
12 mm
Gear rim type
Shimano Micro Spline
Freewheel
Shimano

Origin

Country of origin
Switzerland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Shimano Micro Spline freehub body kit, Tubeless tape 32 mm, Tubeless valve MTB 32 mm

Product dimensions

Weight
1145 g
