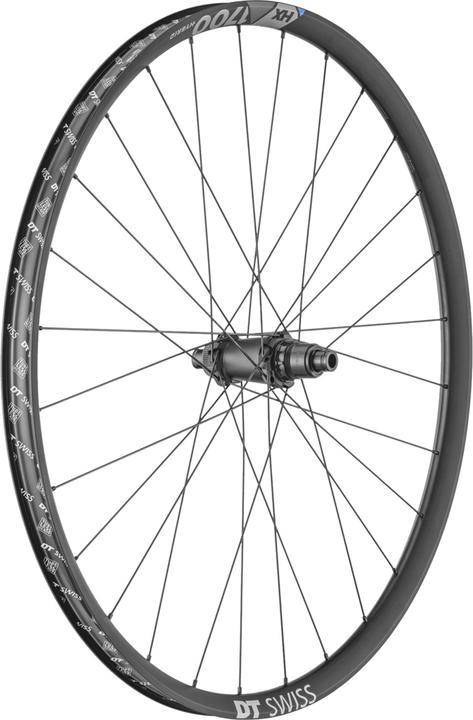

DT Swiss HX 1700 SPLINE roue 27.5" CL 30 148/12 XD

Rear wheel, 27.5"
10Ratings
BrandMore from DT Swiss
Delivered between Fri, 12.12. and Sat, 13.12.
Only 3 pieces in stock at supplier
free shipping

Diameter axle front2

Wheel size2

Product details

EMTBs are designed to ride up and down mountains quickly while having fun. The new HX 1700 Spline high-end aluminum wheelset is the ideal partner for this. Building on many years of experience in developing eMTB components and targeted testing procedures, DT Swiss has revised this wheelset to meet the increased demands of modern e-Mountain biking. The newly designed 350 hub features a larger hub body, which allows for better braking and drive torque, leading to greater robustness. The new hub is now combined with a high-quality welded aluminum rim and reinforced hybrid spokes. This wheelset is available in two widths and two wheel sizes, making it suitable for all riders looking to expand their eMTB adventures.

Key specifications

BIke wheel type
Rear wheel
Suitable tyre type
Tubeless tire
Ability brake type
Disc brake Center lock
Axle system
HR 12x148 mm
Weight
1079 g
Width
35 mm
jaw width
30 mm
Item number
37793839

General information

Manufacturer
DT Swiss
Category
Wheels
Manufacturer no.
WHX1700TGDNSA18329
Release date
30.8.2023

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Wheel properties

Bike area of use
Electric bike
Wheel size
27.5"

Wheel properties

BIke wheel type
Rear wheel
Ability brake type
Disc brake Center lock
Max. load
150 kg

Rim properties

Rim model
HX 1700 SPLINE
Material rim
Aluminium
Rim height
21 mm
Number of holes
28 x
Suitable tyre type
Tubeless tire

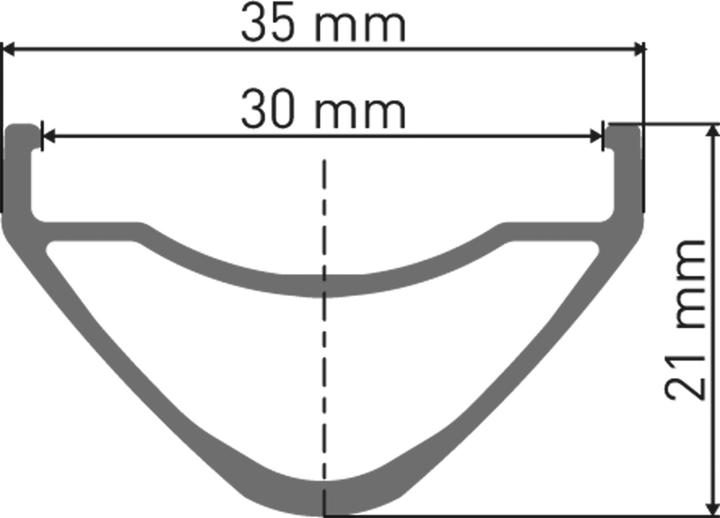

Width
35 mm
jaw width
30 mm

Hub + freewheel Features

Axle system
HR 12x148 mm
Axis standard
Thru axle
Installation width rear
148 mm
Diameter axle front
12 mm
Diameter rear axle
12 mm
Gear rim type
Sram XD
Freewheel
SRAM

Origin

Country of origin
Switzerland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 x SRAM XD freehub body kit, Tubeless rim tape 32 mm, Tubeless valve MTB 32 mm

Product dimensions

Weight
1079 g
