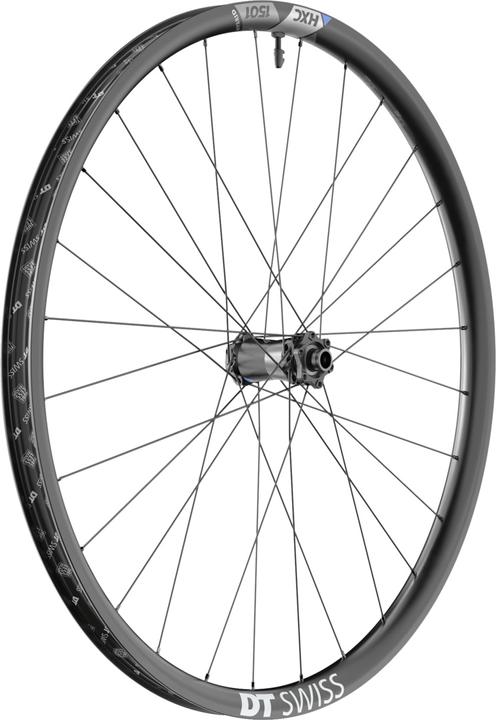

DT Swiss HXC 1501 Spline

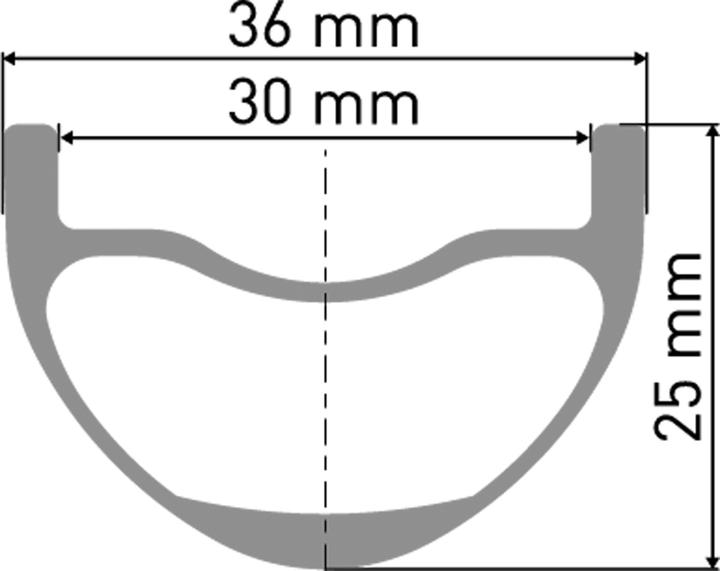

Developed for riders looking for the ultimate performance from an eMTB wheelset. Newly equipped with a carbon rim, the HXC 1501 SPLINE ONE is the top hybrid wheel in the DT Swiss range. The carbon rim is combined with a newly designed hub shell that offers better resistance to drive and braking torques, which are higher on modern eMTBs. With the new Ratchet EXP OS system with 30 teeth, the torque generated by the motor and rider is transferred directly from the pedals to the ground. This transmission is made possible by reinforced spokes, so that even greater acceleration can be generated than with the previous hybrid product range. Each component has been carefully developed, produced and tested to guarantee a stress-free ride and fun, regardless of the rider's level. Front hub - Type: 240 Hybrid Straightpull - Front axle diameter: 15 mm - Features: for thru axle - Installation width: 110 mm Rims - Tyre type: clincher - Construction: Hollow chamber - Tubeless suitable - Height: 25mm - Tread height: low (< 30mm) - Brake system: disc brake - Valve hole: 6.5 mm mm - Material: carbon - Size (in inches): 29 inch - Mouth width: 30 mm Scope of delivery - Scope of delivery: 1x VR DT Swiss HXC 1501 Spline 29" Disc 6-hole 30mm 15/110 mm incl. tubeless tape 32 mm, tubeless valve alu black 18-25 mm Functions & features - Designed for E-bikes Spokes - Material: aluminium - Construction: spokes: DT Hybrid 2 / Nipples: DT ProLock Squorx ProHead aluminium front wheel - Designed for brake type: disc brake 6-hole - Max. Total load: 140 kg - Weight: 878 g Axle - Axle system: VR 15x110 mm - Axle standard: thru axle Main information - Type: front - Application: MTB Details - Details: - ASTM classification: 4.
