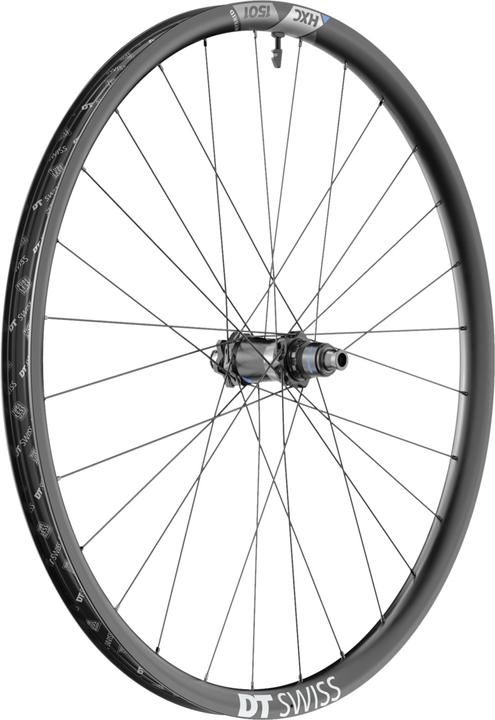

DT Swiss HXC 1501 Spline

Designed for riders seeking the ultimate performance from an eMTB wheelset. Newly equipped with a carbon rim, the HXC 1501 SPLINE ONE is the top hybrid wheel in the DT Swiss range. The carbon rim is combined with a newly designed hub shell that offers better resistance to the higher drive and braking forces present in modern eMTBs. With the new Ratchet EXP OS system featuring 30 teeth, the torque generated by the motor and rider is directly transmitted from the pedals to the ground. This transfer is facilitated by reinforced spokes, allowing for even greater accelerations than previous hybrid product lines. Every component has been carefully designed, produced, and tested to ensure a stress-free ride and enjoyment, regardless of the rider's skill level.

Rear Hub:
• Axle diameter rear: 12 mm
• Freehub body: SRAM XD
• Installation width: 148 mm
• Type: 240 Hybrid Straightpull with Ratchet EXP OS system
• Features: for thru-axle

Rims:
• Height: 25 mm
• Tubeless compatible
• Design: Hollow chamber
• Brake system: Disc brake
• Valve hole: 6.5 mm
• Profile height: low (< 30 mm)
• Material: Carbon
• Size (in inches): 29 inches
• Inner width: 30 mm
• Tire type: Wire tire/Clincher

Scope of delivery:
• Delivery includes: 1x HR DT Swiss HXC 1501 Spline 29" Disc 6-bolt 30 mm 12/148 mm including tubeless tape 32 mm, tubeless valve alu black 18-25 mm

Functions & Features:
• Designed for E-Bikes

Spokes:
• Material: Aluminum
• Design: Spokes: DT Hybrid 2 / Nipples: DT ProLock Squorx ProHead Aluminum

Rear Wheel:
• Designed for brake type: Disc brake 6-bolt
• Weight: 1011 g
• Max. total load: 140 kg

Axle:
• Axle system: HR 12x148 mm
• Axle standard: Thru-axle

Main Information:
• Version: rear
• Intended use: MTB

Details:
• ASTM classification: 4.
