DT Swiss HX 1700 Spline

A mountain bike is designed to conquer mountains, both up and down, while providing fun. That's exactly what the HX 1700 Spline does. And because eMTBs allow the rider to tackle more than just one mountain, the wheels need to be reliable and lightweight. With expertise in bicycle components and the most demanding testing procedures, DT Swiss can design a wheel that perfectly meets its intended purpose. And that's exactly what DT Swiss has done with the HX 1700 Spline. All with one goal: so you can focus solely on the trail.

• Axle system: VR 15x110 mm
• Axle standard: Thru-axle
• Designed for e-bikes
• Intended use: MTB
• Front hub
• Features: for thru-axle
• Axle diameter front: 15 mm
• Installation width: 110 mm

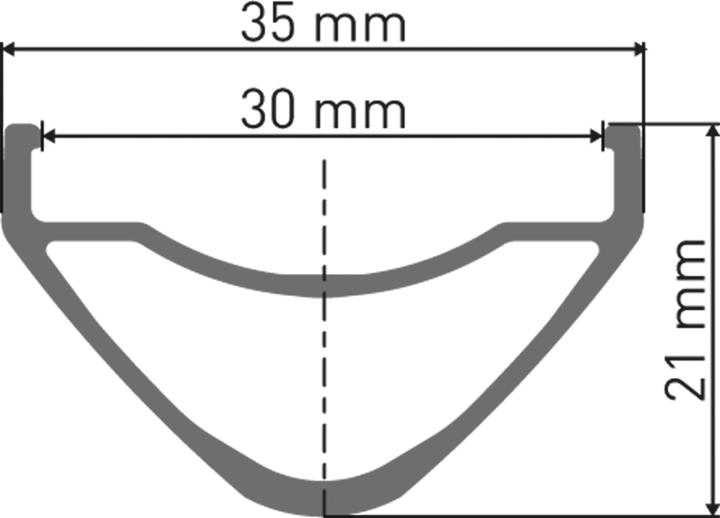

Rims
• Tubeless compatible
• Design: Hollow chamber
• Height: 21 mm
• Profile height: low (< 30 mm)
• Brake system: Disc brake
• Valve hole: 6.5 mm
• Material: Aluminum
• Internal width: 30 mm
• Size (in inches): 29 inches
• Tire type: Wire bead/Clincher

Delivery scope
• Delivery includes: 1 x DT Swiss HX 1700 Spline VR 29" Disc 6-Bolt 30 mm 15x110 mm TA including TL Tape 32 mm, TL Valve MTB 32 mm

Front wheel
• Max. total load: 65 kg
• Designed for brake type: 6-bolt disc brake
• Weight: 1005 g

Main information
• Version: front.
