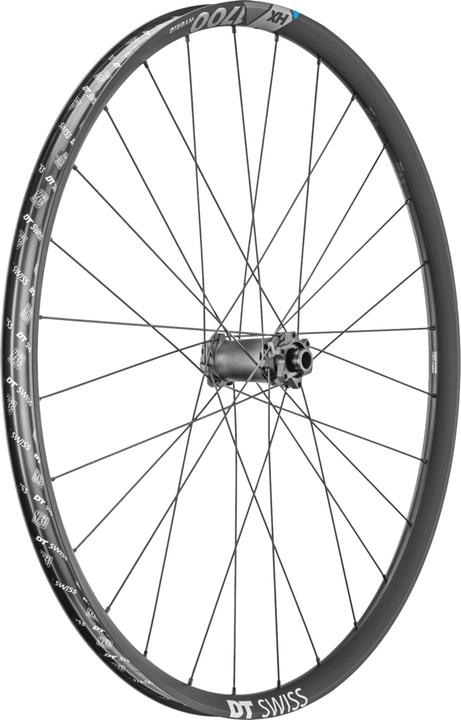

DT Swiss HX 1700 Spline

A mountain bike is designed to conquer mountains while having fun. That's exactly what the HX 1700 Spline does. Since eMTBs allow the rider to tackle more than just one mountain, the wheels need to be reliable and lightweight. With expertise in bicycle components and the most demanding testing procedures, DT Swiss can design a wheel that perfectly meets its intended purpose. And that's exactly what DT Swiss has done with the HX 1700 Spline. All with one goal: to let you focus solely on the trail.

• Purpose: MTB
• Axle system: Front 15x110 mm
• Axle standard: Thru-axle
• Designed for e-bikes

Front hub
• Installation width: 110 mm
• Features: for thru-axle
• Axle diameter front: 15 mm

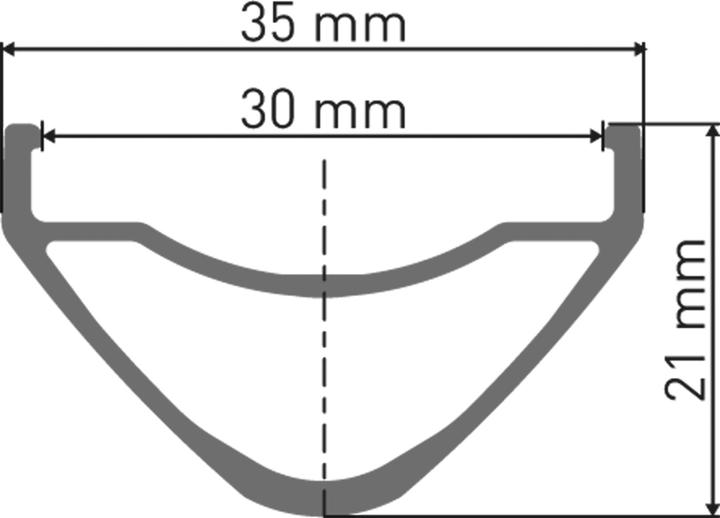

Rims
• Material: Aluminum
• Inner width: 30 mm
• Size (in inches): 27.5 inches
• Tire type: Wire tire/Clincher
• Tubeless compatible
• Design: Hollow chamber
• Height: 21 mm
• Profile height: low (< 30 mm)
• Brake system: Disc brake
• Valve hole: 6.5 mm

Delivery contents
• Delivery contents: 1 x DT Swiss HX 1700 Spline Front 27.5" Disc 6-Bolt 30 mm 15x110 mm TA including TL Tape 32 mm, TL Valve MTB 32 mm

Front wheel
• Designed for brake type: Disc brake 6-bolt
• Weight: 952 g
• Max. total load: 65 kg

Main information
• Version: front.
