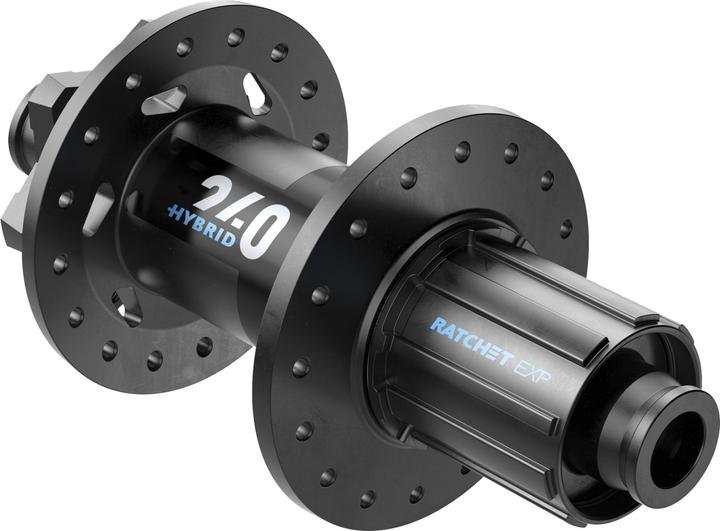

DT Swiss 240 Hybrid MTB DB

Disc brake 6-hole
Ratings
Delivered Tue, 17.6.
Only 3 items in stock at supplier

Product details

The new 240 Hybrid hub is equipped with special components such as the DT Swiss Ratchet EXP OS system with 30 teeth, designed to reliably transfer muscle and motor power to the ground. The bearing on the drive side and the hub flange have been enlarged. The also enlarged spoke holes are specifically designed to accommodate the reinforced spokes with a diameter of 2.34 mm from DT Swiss. These spokes can withstand the higher loads that occur during acceleration and braking. Additionally, the freewheel system made of hardened steel enhances the hub's durability, allowing for longer, carefree eMTB rides.

Key specifications

Material
Aluminium
Bike area of use
Mountain bike
Freewheel
Shimano Hyperglide
Weight
331 g
Axle diameter
12 mm
Installation width
148 mm
Item number
32468187

General information

Manufacturer
DT Swiss
Category
Hubs + Freewheels
Manufacturer no.
H240TDDSR32SA9086S
Release date
20.1.2023

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Wheel properties

Bike area of use
Mountain bike

Hub + freewheel Features

Hub type
Rear wheel hub
Ability brake type
Disc brake 6-hole
Axis standard
Thru axle
Number of holes
32 x
Axle diameter
12 mm
Installation width
148 mm
Cassette compatibility
11-speed
Freewheel
Shimano Hyperglide

Origin

Country of origin
Switzerland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
331 g
