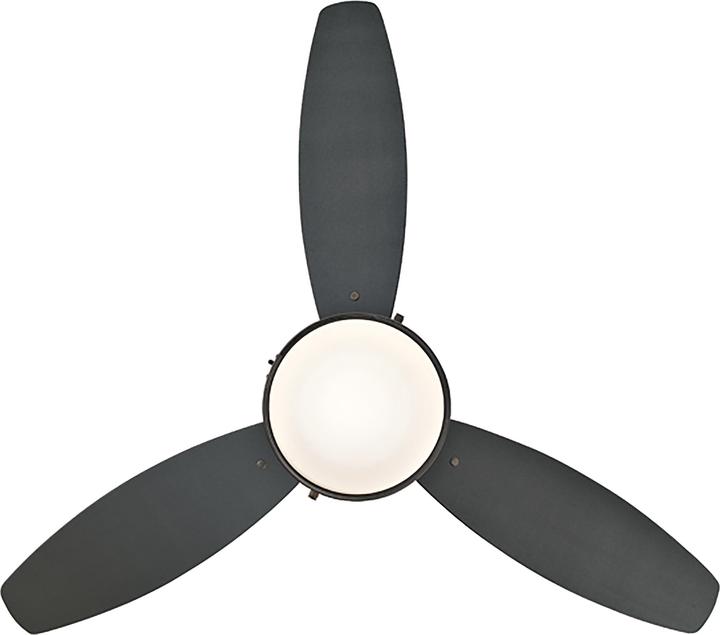

Westinghouse Ceiling Fan Alloy 107 cm with LED Light

Dimensions and technical data

• 220-240 V ~ 50 Hz

• Diameter: 107 cm

• Housing colour: Gun Metal

• Sash colour: black / graphite grey (reversible sash, can be mounted on both sides)

• Sash tilt angle: 14

• Integrated lighting: 17 W LED (illuminant included in delivery)

• Motor power consumption: 30 / 34 / 47 W

• Revolutions per minute: 110 / 158 / 218

• max. air flow: 135 m³/min

• max. noise level: 48 dB(A)

• Distance ceiling to sash: 18 cm

• Total height: 30 cm

• Diameter canopy: 13 cm

• max. ceiling slope: 18

• Winter and summer operation (forward and reverse) via slide switch on housing

• Separate pull switches for light and fan: light on / off, 3 speeds / off

• Weight: 5.5 kg

Data illuminant

• LED

• Power: 17 W

• Equivalent incandescent lamp power: 75 W

• Luminous flux: 1300 lm

• Colour temperature: 3000 K (warm white)

• Luminous efficacy: 76.47 l/W

• Colour rendering index: 80

• Service life: 25000 h

• Energy efficiency class: F

• The lamps in the luminaire cannot be replaced.
