Vitramo VITR wire rope suspension

Vitramo Cable Suspension VZS-VH

Manufacturer: Vitramo
Designation: Cable suspension for series VH
Type: VZS-VH
End fastening: with threaded end
With decorative cover: no
Type of end connection: threaded end
Type of release: other
Cable length: 1.5 m
Cable diameter: 1.2 mm
Cable material: steel
Surface protection: other
Material of locking device/tensioner: stainless steel
Color: stainless steel
Permissible load capacity: 64 kg

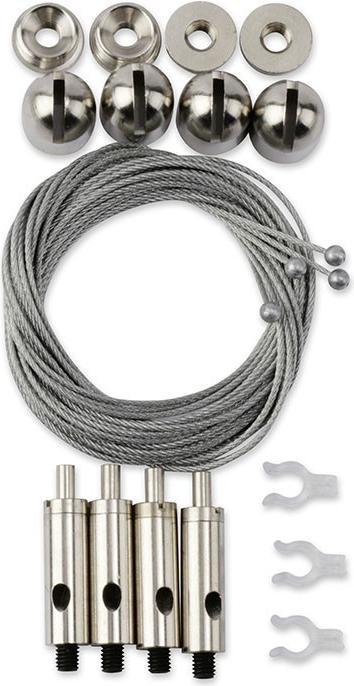

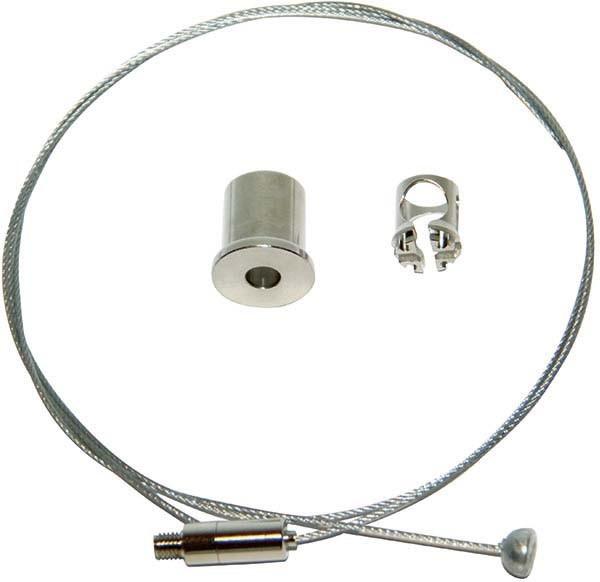

The Vitramo cable suspension VZS-VH is designed for mounting the ceiling heating elements of the VH series with a length of approximately 1500 mm. The weight is about 0.13 kg. A set consists of 4 base parts for ceiling mounting of the infrared heater, 4 fastening parts for the cable, 4 cables, and 4 cable fasteners with lateral cable outlet for easy height adjustment.

The ceiling holders on the device cover of the Vitramo infrared heating elements of the VH series are equipped as standard with four M5 threads to attach the cables to the ceiling holder. Mark the cable positions using the drilling template included with the heating elements in the packaging on the ceiling (use the punched cross) and mount the fastening parts for the cables on the ceiling.

The infrared heater suspended from the ceiling by cables is suitable for use, for example, in exposed beam ceilings, conservatories, or for heating individual workstations. The generated infrared heat radiation is emitted by the heating element in an effective range that is practically comparable to a hemisphere. Vitramo recommends ceiling mounting of the infrared heater, as this achieves a radiation share of up to 80%.
