Theben Hmt 6 S Knx

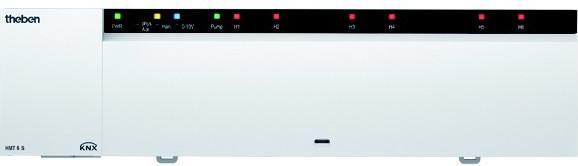

Theben KNX heating actuator HMT 6 S KNX

Manufacturer: Theben
Designation: KNX heating actuator for 6 actuators
Type: HMT 6 S KNX
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Mounting type: REG
With bus coupling: Yes
Bus module removable: No
Actuating variable continuous: Yes
Actuating variable switching: Yes
Valve protection function: Yes
Manual switching: No
Max. switching current (ohmic load): 1.5 A
Max. switching current (ohmic load): 1.4 A
Number of outputs: 6
Max. output current: 5 A
Output current: 5 A
Switching voltage: 24 V
Protection class (IP): IP20

Heating actuator for controlling 6 thermal actuators, switching 24 V DC or continuous 0-10 V DC. Integration of up to 2 heating circuit pumps. For inclusion of boiler control. Demand-based adaptation of the flow temperature: Automatic determination of the maximum actuating variable for adapting the flow temperature to the actual demand. No KNX room thermostat required: Flexible use of each channel as a heating actuator or heating controller. Installation directly in the heating circuit manifold. Screwless plug-in terminal technology. Integrated power supply. Noiseless semiconductor switches (Triac). Continuous or switching manipulated variable selectable.

Supplied: Theben KNX heating actuator for 6 actuators HMT 6 S KNX, packaging unit: 1 piece.
