Stiebel Eltron Condensate pump

Stiebel Eltron Condensate Pump PK 8 171853

Manufacturer: Stiebel Eltron
Description: Condensate Pump
Type: PK 8 171853
Design: with internal float
Material of the pump housing: Plastic
Electrical connection: Cable
Number of phases: 1
Frequency: 50 Hz
Max. delivery height: 6 m
Max. pumping volume: 8 l/h
Max. suction height: 2.5 m
Motor power absorbed (P1): 8 W
Diameter, inlet connection: 6 mm
Diameter, outlet connection: 6 mm
With drain hose: yes
Width: 77 mm
Height: 62 mm
Depth: 50 mm
With granulate grains: no
Suitable for wall mounting: yes
Suitable for floor mounting: no

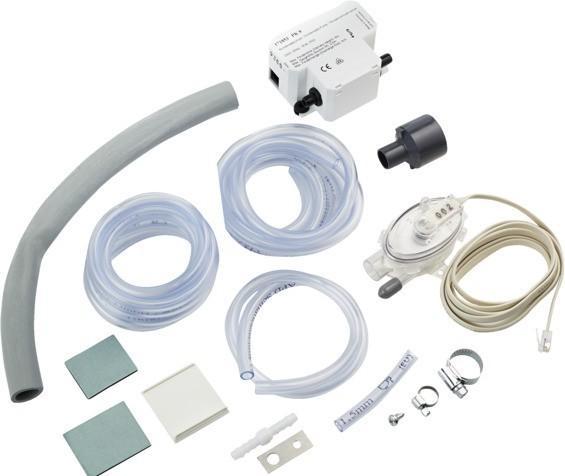

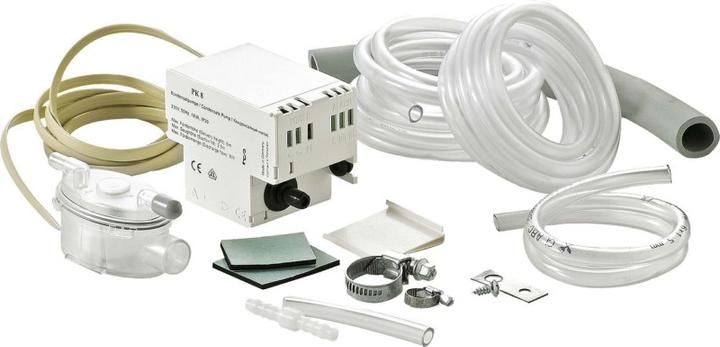

The condensate pump consists of the pump module and the sensor block for discharging condensate when drainage via a slope is not possible. The pump module is housed in a plastic casing, and the power connection is made via a terminal block directly on the pump module.
EAN: 4017211718538.
