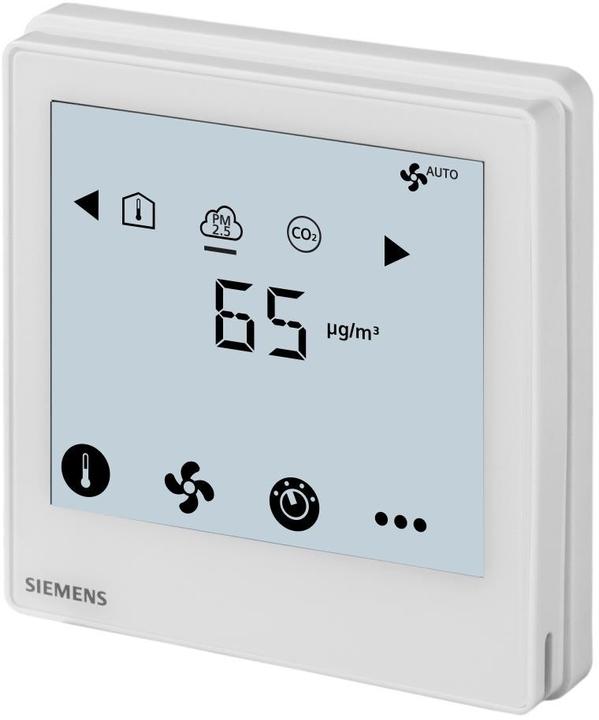

Siemens RDF870KN Flush-mounted KNX PM2.5

Siemens digital industrial flush-mounted KNX PM2.5 RDF870KN

Manufacturer: Siemens Digital Industries
Designation: Flush-mounted KNX PM2.5
Type: RDF870KN
Type of power supply: 230 V AC
Measuring range: 0 to 50 °C
Sensor external: No
Control characteristic: Other
Temperature readable: Yes
With noise level display: No
Mounting type: Other
With display: Yes
With drinking water circuit: No
Protection class (IP): IP30
Explosion-proof: No
Colour: White
Height: 86 mm
Width: 86 mm
Depth: 46.8 mm
Power consumption in standby mode: 7 W

Further details:
Operating voltage AC 230 V, large backlit display - Display and setpoint adjustment for PM2.5 and CO2 control - Display of room temperature, outside temperature, VOC (volatile organic compound) and humidity (relative humidity) - Supports 1-/3-/4-speed on/off fan or DC fan output - Two multifunctional inputs for external passive and DC 0-10 V sensors - Operating modes: Comfort, Economy and protective mode - KNX S-Mode - KNX commissioning via ETS or local control parameters - KNX integration in Desigo via group addressing or individual addressing - KNX integration in third-party systems via group addressing - Installation in rectangular (86 mm) or round (60 mm) installation box with 60 mm mounting hole spacing and minimum 40 mm deep - Housing colour: Ivory white (RAL 9001)

Selectable applications:

• PM2.5 control only
• CO2 control only
• PM2.5 & CO2 control (CO2 control with higher priority)
• Ventilation control.
