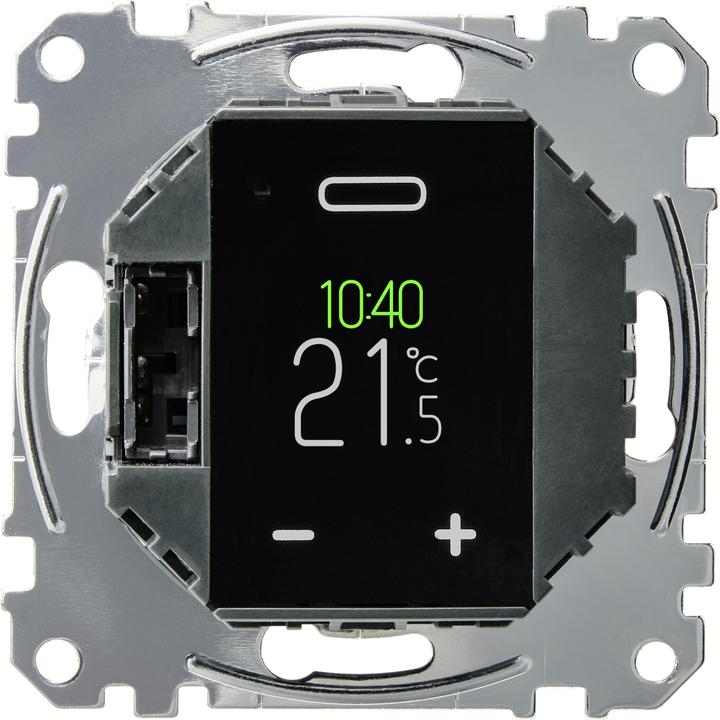

Schneider Electric Programmable Universal Temperature ELG176161

Programmable Universal Temperature Controller with Touch Display: The programmable universal temperature controller with touch display allows for the regulation of room or floor temperature. Operation is conducted via a touch display. Electric underfloor heating, radiators, or actuators can be connected to the controller. The thermostat features a weekly timer with individually adjustable programs. Alternatively, three pre-programmed settings can be selected. Various heating modes are available: Comfort mode, ECO mode, and Frost protection mode. The thermostat can operate in four different modes:

1. Room air operation: The internal temperature sensor detects the room temperature and regulates it.
2. Floor operation: The optional floor sensor measures the floor temperature and regulates the electric underfloor heating.
3. Dual operation: The internal temperature sensor measures the room temperature and regulates it, while the floor sensor monitors the floor temperature and limits it to the preset maximum temperature value. This mode is particularly recommended for temperature-sensitive parquet or laminate flooring.
4. PWM operation: Pulse Width Modulation (PWM) turns the heating on and off at regular intervals. The desired temperature is set via the PWM value. The floor sensor is inactive in this mode. Room temperature limits are maintained.

Functions: Automatic summer/winter time change, valve protection function, operating hours display. Controller behavior: PWM or 2-point. Relay output behavior: Normally open/closed. Self-learning lead times. Rated voltage: AC 230 V, 50 Hz. Rated load (resistive): 3680 W, 16 A. Rated load (inductive): 1 A, cos Phi 0.6. Operating temperature: -10 °C to +35 °C. Setting range: Room temperature: +5 °C to +35 °C. Floor temperature: +5 °C to +50 °C.
