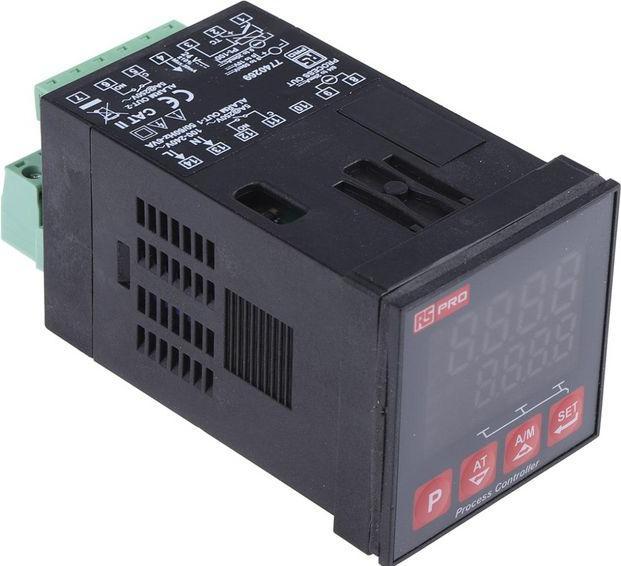

RS PRO PID Temp Controller, 48x48, 100-240Vac

Output type: Current, Relay
Supply voltage: 100 to 240 V AC
Size: 48 x 48 mm
Number of outputs: 3
Operating temperature min: 0°C
Operating temperature max: +50°C
Temperature range: 0 to +50°C
Control mode: PID controller
Configurable outputs: Current, Relay
Communication module available: No
Display type: LED
Protection class: IP20, IP65
Panel depth: 87.5 mm

Process controller with universal input. The PID process controllers in this series are designed to measure and control temperature and any process value. They can be used in many applications with their universal process input, control outputs, and selectable alarm functions. They are primarily used in the glass, plastic, petrochemical, textile, automotive, and machinery industries. Display of 4 digits (PV) and 4 digits for process setting (SV). Universal process input. Two-point or multi-point calibration for DC/DC input. Automatic tuning and self-tuning for PID. Selection between manual/automatic mode for control outputs. Shock-free transmission. Programmable heating, cooling, and alarm functions for control outputs.
