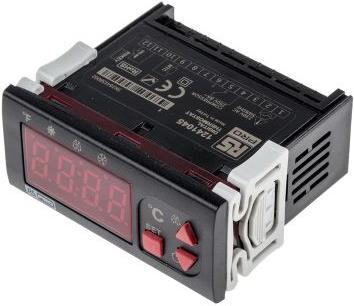

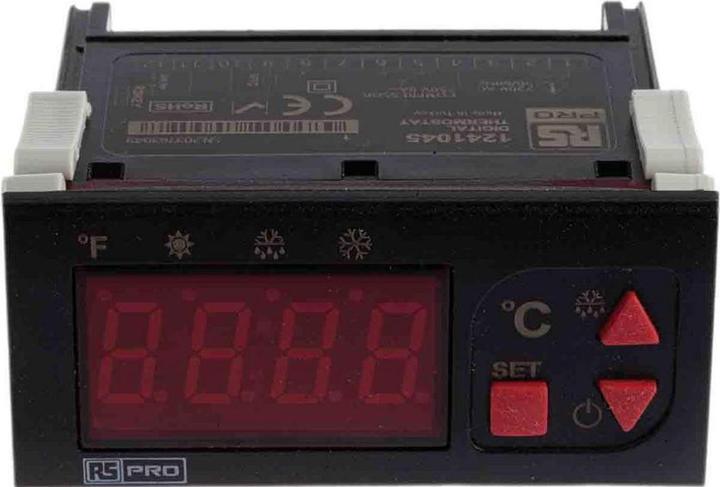

RS PRO On/Off Temp Controller, 35x77, 230V ac

Entry type: NTC
Output type: Relay
Number of inputs: 1
Number of outputs: 1
Supply voltage: 230 V AC
Range: –60 → +150 °C
Size: 77 x 35 mm
Minimum operating temperature: 0 °C
Maximum operating temperature: +50 °C
Panel depth: 61 mm
Connection type: Screw

Frost protection thermostat from RS Pro – 2 outputs. The temperature controller from RS Pro is a frost protection thermostat designed for use in freezing applications. Its compact design makes it easy to install. The temperature controller features an NTC sensor input and two outputs for compressor, fan, and defrost control.

Features and benefits:

• 4-digit LED display
• Size 35 x 77 mm
• On/Off control
• Control output for cooling or heating
• Simple NTC sensor input
• Additional output for defrosting or lighting
• Operating temperature range: –60 °C to 150 °C
• Compressor protection settings
• Sensor failure setting, output status can be set to On, Off, or Pulse
• Offset setting for sensor input
• Adjustable upper and lower limits
• Adjustable defrost duration and intervals
• 6 selectable alarm tones
• High and low alarm thresholds, absolute or deviation
• Temperature unit °C or °F
• Digital input; external alarm, start defrost
• Optional button flash programming, real-time clock, or RS485
• CE certified.
