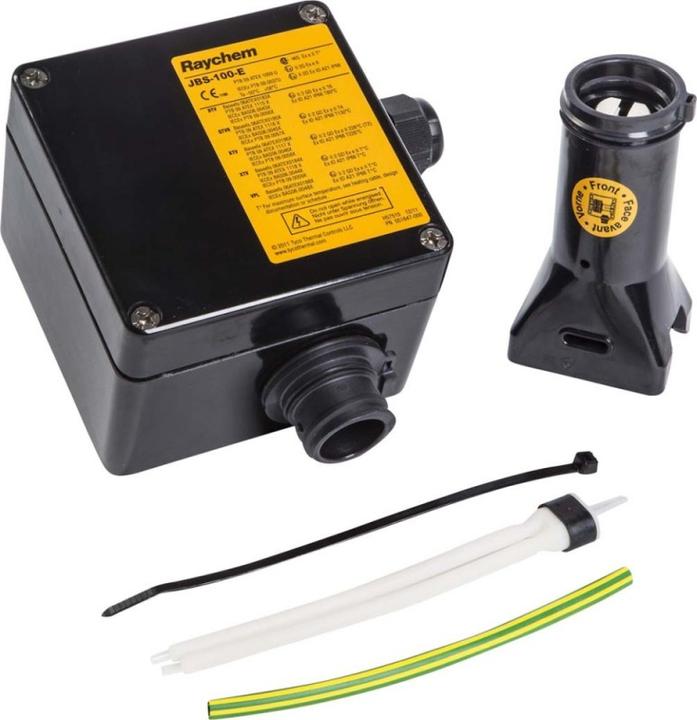

Raychem Tilslutningsboks JBS-100-E f/varmekab

NVent Thermal connection system JBS-100-E

Manufacturer: nVent Thermal
Designation: Connection system for 1 heating cable
Type: JBS-100-E
Number of connection terminals: 3
Max. conductor cross-section: 10 mm²
Length: 120 mm
Width: 120 mm
Depth: 90 mm
Material thickness of housing: 7 mm
Mounting type: Surface-mounted: no
Number of entries: 2
Type of entry: Cable
Material: Plastic
Halogen-free: yes
Surface protection: other
Colour: black
Protection class (IP): IP66
With cover: yes
Cover fixing: screwed
With transparent cover: no
Sealable: no
Rated insulation voltage Ui: 480 V
Operating temperature: -55 to 56 °C
Explosion-proof version: no
For Ex-zone gas: 1, 2
For Ex-zone dust: 21, 22

nVent Thermal connection system JBS-100-E: further details
Integrated terminal box for power supply to a heating cable. Ex-approval. Cold connection technology.
