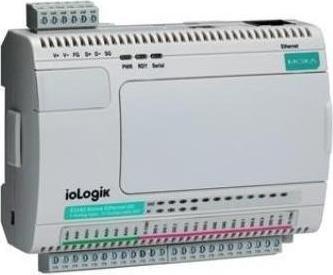

Moxa IOLOGIK E2242 - Universal controller, 4 AIs, 12 DIOs, ClickGo, -10 to 60C operating temperature

Universal controller, 4 AIs, 12 DIOs, Clickundamp;Go, -10 to 60°C Operating temperature

Control logic
Language

• Clickundamp;Go

Input/output interface
Configurable DIO channels (via software)

• 12

Analogue input channels

• 4

Buttons

• Reset button

Rotary switch

• 0 to 9

Isolation

• 3k VDC or 2k Vrms

Digital outputs
Connector

• Screwable Euroblock terminal

I/O type

• sink

I/O mode

• DO or pulse output

Rated current

• 200 mA per channel

Pulse output frequency

• 1 kHz

DIO output leakage current

• 4.0 mA @ 24 VDC

Overcurrent protection

• 0.65 A per channel @ 25°C

Overtemperature shutdown

• 175°C (min.))

Overvoltage protection

• 45 VDC (typical)

Analogue inputs
Connection

• Screwable Euroblock terminal

I/O mode

• Voltage/current

I/O type

• Differential

Resolution

• 16 bits

Input range

• ±150 mV
• 0 to 150 mV
• ±500 mV
• 0 to 500 mV
• ±5 V
• ±10 V
• 0 to 20 mA
• 4 to 20 mA

Accuracy

• ±0.1% FSR @ 25°C
• ±0.3% FSR @ -10 to 60°C

Sampling rate

• All channels: 32 samples/sec.

Per channel: 8 samples/sec.
Single channel: 100 samples/sec
Built-in resistor for current input

• 120 Ohm

Input impedance

• 200 Kilo-Ohm (min.))

Overvoltage protection

• -25 to +30 VDC (power on)
• -35 to +35 VDC (power off)

LED interface
LED indicators

• PWR, RDY, Serial, I/O status

Ethernet interface
10/100BaseT(X) ports (RJ45 connector)

• 1

Magnetic isolation protection

• 1.5 kV (built-in)

Ethernet software features
Configuration options

• Windows Utility (ioAdmin), Web Console (HTTP)

Industrial protocols

• Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands

Management

• BOOTP, IPv4, SMTP, DHCP Client, HTTP, TCP/IP

MIB

• Device settings MIB

Time management

• SNTP

Security functions
Authentication

• Local database

Encryption

• HMAC

Security protocols

• SNMPv3

Modbus TCP
Supported functions

• 1, 2, 3, 4, 5, 6, 15, 16

Mode

• Server (slave)

Serial interface
Connection

• Terminal...
