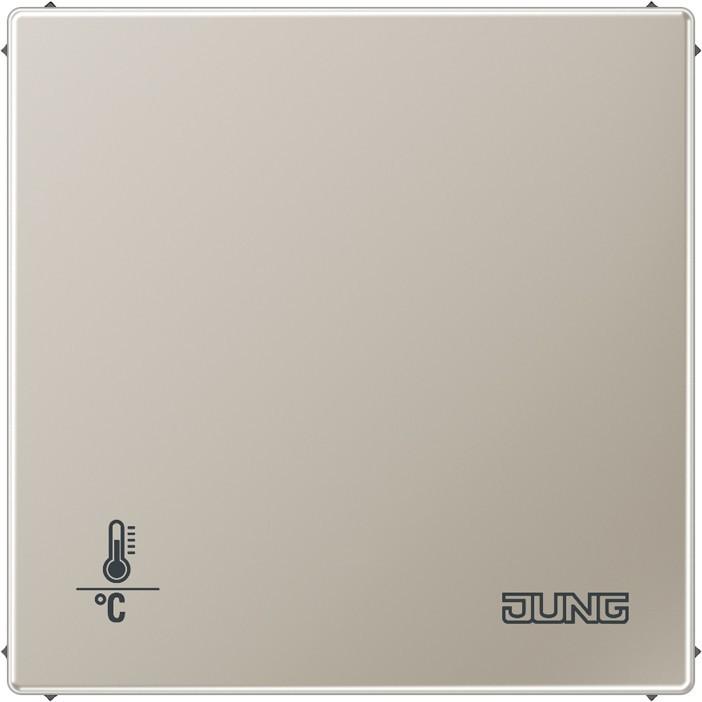

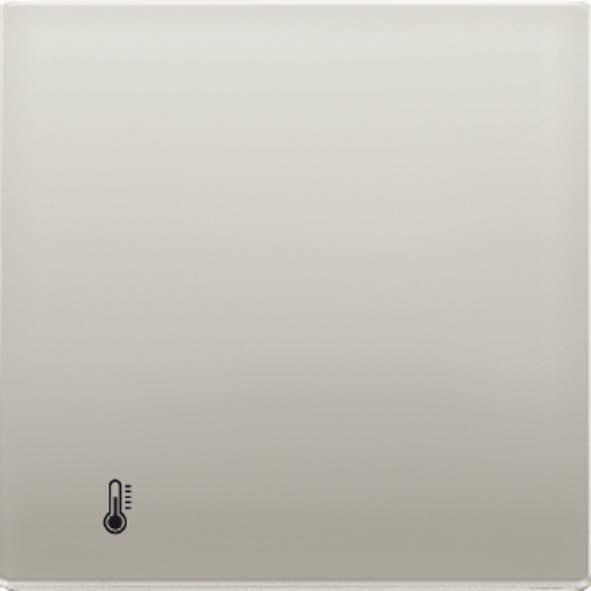

JUNG Room thermostat UP LS KNX edst mt ES2178ORTS

With integrated bus coupler, integrated 4-fold button interface, without a control knob for setpoint adjustment. The controller cannot be manipulated externally. Full functionality is supported from ETS 3.0d or higher. ETS product family: Physical sensors. Product type: Temperature. Intended use: Individual room temperature control in KNX installations. Mounting in device box according to DIN 49073.

Product features: Measurement of room temperature and comparison with setpoint temperature. Setpoint specification by selecting the operating mode. Operating modes: Comfort, Standby, Night operation, Frost/Heat protection. Heating and cooling operation. Heating and cooling with basic and additional stages. Operation exclusively via the bus. Button interface with four inputs or two outputs and two inputs, e.g., for window contacts, buttons, LEDs, etc. Function of the inputs: Switching, Dimming, Shutter control, Lighting scene secondary control, Brightness or temperature value provider. Optional: External temperature sensor can be connected.

KNX Medium: TP 256. KNX nominal voltage: DC 21 ... 32 V SELV. KNX current consumption: max. 7.5 mA. KNX connection: Terminal block. Ambient temperature: −5 ... +45 °C. Storage/transport temperature: −25 ... +70 °C. Output current: 0.8 mA. Inputs and outputs: Cable type: J-Y(St)Y 2 x 2 x 0.8 mm. Cable length: max. 5 m. Cable length for temperature sensor: max. 50 m. Caution: If cables with a cross-section of 1.5 mm² are generally used, install a switch junction box!.
