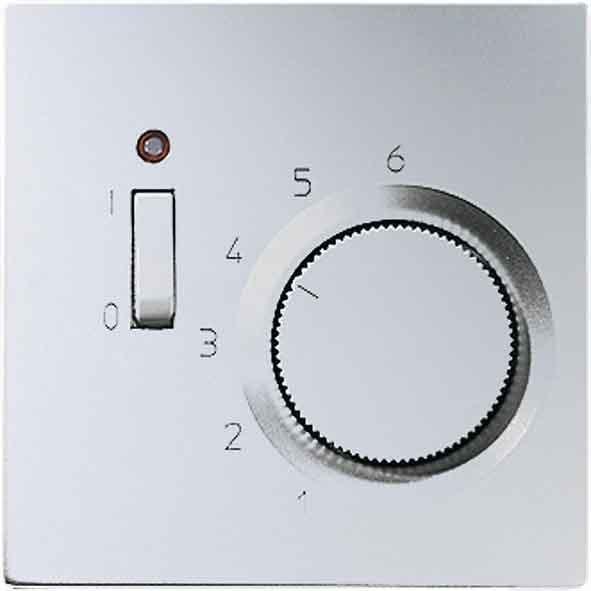

JUNG Room temperature controller

Jung Room Thermostat alu TR AL 231

Manufacturer: Jung
Designation: Room Thermostat alu
1-pole NC contact AC 230 V
Type: TR AL 231
Design: Brand product
Power supply type: 230 V AC
Connection: 2-wire
With receiver: No
Measuring range: 5...30 °C
External sensor: No
Suitable for heating: Yes
Number of heating outputs: 1
Suitable for cooling: Yes
Number of cooling outputs: 1
Differential value: 0.5 K
Adjustable differential: No
Temperature readable: No
With noise level display: No
Transducer/sensor type: Bimetal
Mounting type: Flush-mounted
With display: No
Operation: Rotary control
With drinking water circuit: No
Contact type: NC contact
Max. contact voltage: 230 V
Color: Black
Max. voltage of contacts: 230 V
Height: 70 mm
Width: 70 mm

Further details:
Room thermostat with NC contact, aluminum with spring clamps for rigid conductors up to 2.5 mm² (screw fastening, without mounting lugs). 1-pole NC contact 10 (4) A, AC 230 V, 50/60 Hz. The value in parentheses indicates the inductive load at a cos φ of 0.6. Thermal feedback (N conductor required) switching differential approx. 0.5 K, temperature range approx. +5 ... +30 °C. Separate connection for time-controlled night reduction approx. 5 K with on/off switch and control LED. When the set temperature is reached, the contact opens.
