JUNG Floor heating controller

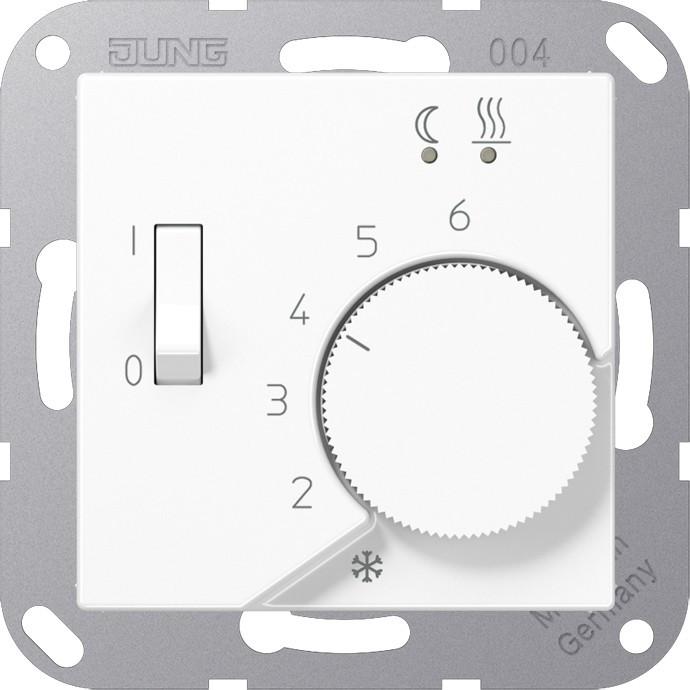

Jung floor heating controller AWS FTR A 231 WW

Manufacturer: Jung
Designation: Floor heating controller
Type: FTR A 231 WW
Design: Branded
Type of power supply: 230 V AC
Connection: 2-wire
With receiver: No
Measuring range: 10...50 °C
External sensor: Yes
Thermal feedback: Without
Suitable for heating: Yes
Number of heating outputs: 1
Suitable for cooling: No
Differential value: 1 K
Differential adjustable: No
Temperature readable: No
With noise level indicator: No
Type of transducer/sensor: Other
Mounting type: Flush-mounted
With display: No
Operation: Rotary
With drinking water circuit: No
Contact type: Normally open contact (NO)
Max. voltage of contacts: 230 V
Protection class (IP): IP31
Color: White
RAL number: 9010
Height: 55 mm
Width: 55 mm

More details:
With spring terminals for rigid conductors up to 2.5 mm² (screw fixing, without fixing claws)
1-pole NO contact 10 A, AC 230 V ~, 50/60 Hz for controlling electric floor heating and floor temperature control systems with NTC remote sensor: 4 m long, 7.8 mm Ø
The floor temperature is controlled with a switching differential of approximately 1 K, temperature range approximately +10 ... +50 °C
Separate connection for time-controlled night setback approximately 5 K
With switch on-off LED red: Control unit requests heat (heating mode)
LED green: Temperature setback
Relay contact not potential-free
Heating interruption according to EN 50559: Within one hour of continuous heating, the room temperature controller automatically interrupts the heating process for 5 minutes.
EAN: 4011377046306.
