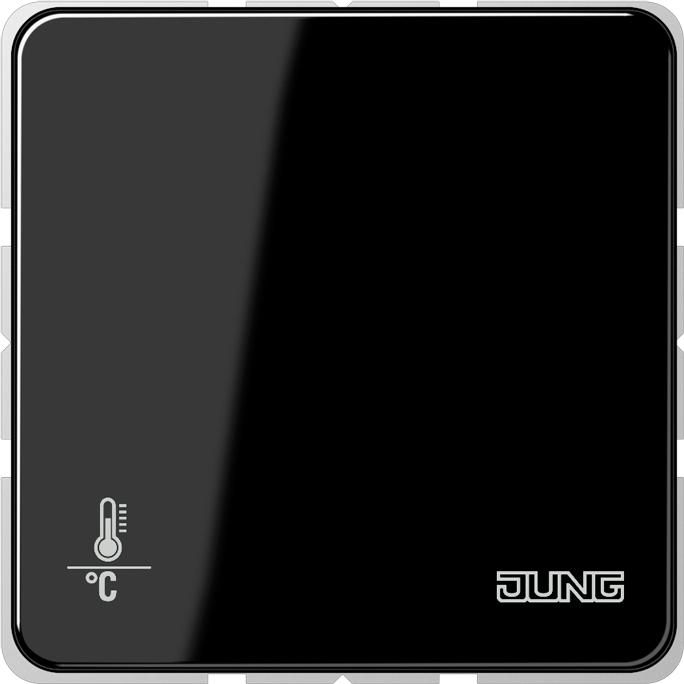

JUNG CD2178ORTSSW

KNX object controller in black with an integrated bus coupler and button interface, 4-fold without a control knob for setpoint adjustment. The controller is tamper-proof from the outside. Full functionality is supported from ETS 3.0d or higher.

Product family: ETS.
Physical sensors: Product type temperature.
Intended use: Individual room temperature control in KNX installations. Mounting in a device box with dimensions according to DIN 49073.

Product features include measurement of room temperature and comparison with the set temperature. Setpoint specification is achieved by selecting the operating mode. Operating modes include comfort, standby, night operation, and frost/heat protection. Heating and cooling operation includes basic and additional stages. Operation is exclusively via the bus.

The button interface has four inputs or two outputs and two inputs, suitable for window contacts, buttons, LEDs, etc. The functions of the inputs include switching, dimming, shutter control, light scene secondary control, and brightness or temperature value provision. An external temperature sensor can be connected optionally.

KNX medium: TP 256. Nominal voltage KNX: DC 21 to 32 V SELV. KNX current consumption: max. 7.5 mA. KNX connection: terminal block. Ambient temperature: -5 to +45 °C. Storage/transport temperature: -25 to +70 °C. Output current: 0.8 mA.

Inputs and outputs: Cable type: J-Y(St)Y 2 x 2 x 0.8 mm. Cable length: max. 5 m. Cable length for temperature sensor: max. 50 m. Caution: If cables with a cross-section of 1.5 mm² are used, a switch junction box must be used.
