Jumo Kompaktregler 703042/181-000-23/00

Jumo Compact Controller 703042/181-000-23/00

Manufacturer: Jumo
Designation: Compact Controller
Control Range: -200 to +850 °C
Type: 703042/181-000-23/00
Electrical Connection Type: Screw Connection
Rated Control Supply Voltage Us for DC: 20 to 30 V
Voltage Type for Operation: DC
Removable Terminals: No
Number of Measuring Circuits: 1
Error Memory Possible: No
External Reset Possible: No
Number of Contacts as Switches: 1
Temperature Measurement Range: -200 to 850 °C
Width: 48 mm
Height: 24 mm
Depth: 100 mm

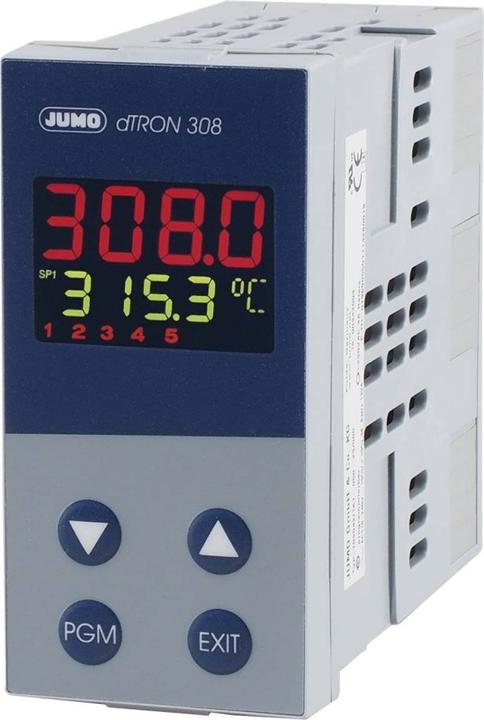

The PID controller for panel mounting features 1 universal input, 2 relay outputs (changeover), 2 binary inputs/outputs, and a power supply for two-wire measuring transducers. The power supply range is AC 110 to 240 V +10/-15 %, 48 to 63 Hz. As a temperature controller TR according to DIN EN 14 597, the device can be used in heat-generating systems for regulating and controlling the temperature of liquid and gaseous media.

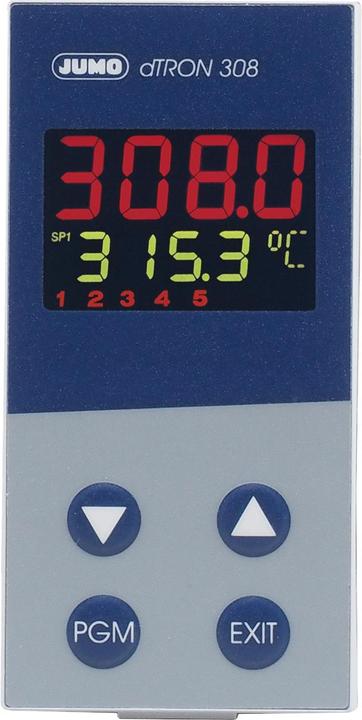

The high-contrast, multi-color LCD display for actual value, setpoint, and user guidance consists of two four-digit 7-segment displays. Four buttons allow for easy operation. The compact controller can be configured as a two-point, three-point, three-point step controller, or continuous controller. The linearizations for common measuring sensors are stored, and a custom linearization table can be programmed. A setup program is available for comfortable configuration via a PC. The electrical connection is made at the back via screw terminals. The controller has approvals according to cULus and GOST.

EAN: 4053877000099.
