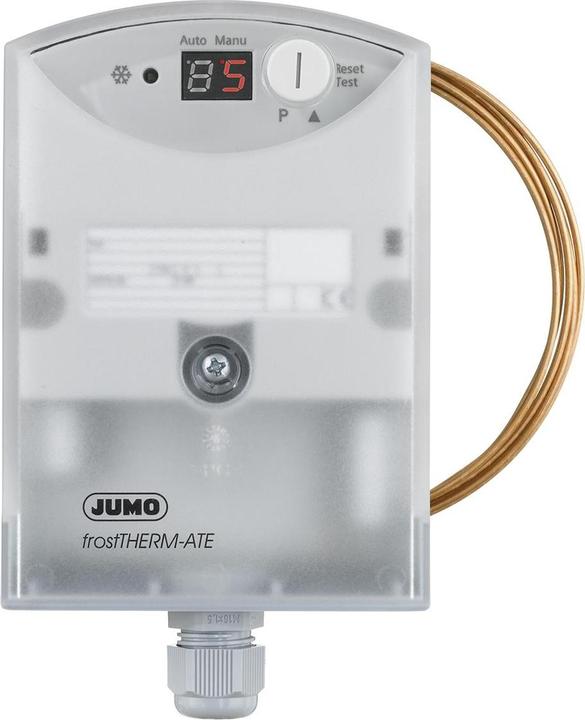

Jumo 60003410

The single-pole mechanical surface-mounted thermostat with relay output signal is very robust due to its impact-resistant housing made of high-quality plastic and can be used even in harsh conditions. The measuring system can be used without any issues up to a maximum allowable sensor temperature of 110 °C. The sensor cable of the thermostat is made of copper. With a bending radius of 20 mm, the cable can be flexibly routed as needed. The maximum allowable ambient temperature at the housing is 55 °C. For the device to operate correctly, the ambient temperature at the housing must be above the set switching point. The housing is mounted directly on the lower part of the housing for wall installation. The desired switch-off temperature is set using buttons and displayed in two digits on a 7-segment display. The thermostat features a high switching point accuracy of +/-1 K. The device has a potential-free relay output designed as a changeover switch. The minimum switching capacity is AC/DC 12 V, 100 mA, while the maximum switching capacity is AC 230 V, 6(2) A or DC 24 V, 6 A. Additionally, the device has analog outputs that can handle a maximum current of 1 mA at DC 0 to 10 V with an allowable cable length of 300 m at 1.5 mm². The analog input has a maximum allowable current of 1 mA, DC 0 to 10 V. The power supply is AC 24 V. The frost monitor is very versatile and is used in both building automation and heating, ventilation, and air conditioning technology.
