INNE Thermostat with 230V socket E6185

Temperature Thermostat 230V + Sensor

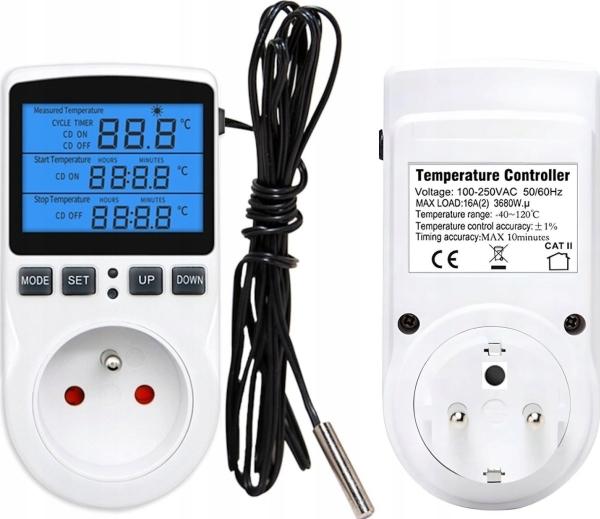

Multifunctional thermostat – digital socket temperature controller with timer, sensor probe, heating, cooling, 16 A, 230 V, 110 V.

The thermostat is compact and should be plugged into an outlet. We can automatically control both cooling and heating.

It features a well-readable LED display and a waterproof temperature sensor with a 150 cm long cable.

The device can be used in refrigerators, ovens, pumps, swimming pools, smokehouses, and anywhere temperature control is required.

Functions of the measuring device:

The external temperature sensor can capture the temperature.

Set the start and stop temperatures.

Cycle time, start and stop time, timer.

Widely used in smart control applications such as coal heating, greenhouses, etc.

Technical specifications:

Voltage 110V ~ 230V AC 50Hz/60Hz.

Maximum load 16A (2) 3680W.

Temperature range -40 ~ 120 °C.

Accuracy +/- 1 %.

Time accuracy up to 10 minutes.

Temperature range -40 ~ 120 °C.

Open circuit (or less than -40 °C), the first line of the screen blinks "1", -40 ~ -45 °C, display shows -40 °C.

Short circuit (or more than 120 °C), first display line blinks, display shows "E2", 121-129 °C shows 120 °C.

Below -10 °C or above 100 °C, the value after the decimal point is not displayed.

Cooling mode, start temperature > stop temperature.

Heating mode, start temperature.
