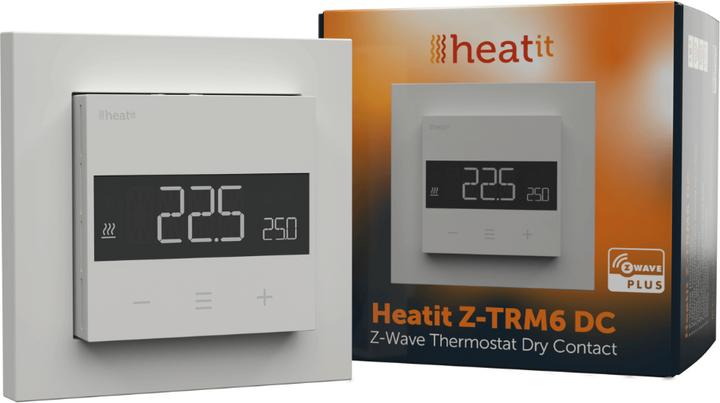

Heatit controls - Z-TRM6 DC Z-Wave thermostat, white

Heatit Z-TRM6 DC

The Heatit Z-TRM6 DC is an electronic thermostat with a voltage-free relay, designed for controlling boilers, heat pumps, and actuators. The thermostat can be controlled via your Z-Wave network or through the buttons on the front panel and features a user-friendly interface.

The Heatit Z-TRM6 DC has three modes: Heating, Cooling, and Eco.

The thermostat fits standard European junction boxes and can be used with most System 55 frames. It features a robust metal frame for secure mounting to the junction box and is equipped with an integrated ambient temperature sensor. Two additional external temperature sensors can also be connected.

The Heatit Z-TRM6 DC allows you to manually set the measurement value for power measurement.

The thermostat can be configured with multiple associations and can be used as the main thermostat. It can control up to ten thermostats and ten external relays, such as wall sockets.

Main Features

• Z-Wave Thermostat
• Internal ambient sensor
• External ambient sensor (wired)
• Floor sensor
• Temperature limiter
• Boiler and heat pump control
• Actuator control
• Three operating modes: Heating, Cooling, and Eco
• Hysteresis/PWM
• Temperature calibration
• Open window detection
• Relay status indicator
• Adjustable screen brightness
• Unipolar switches
• Lock/Child safety
• Temperature display in gateway
• Weekly program in gateway
• Power measurement
• SmartStart
• Firmware update (OTA)
• Support for encryption modes S0, S2 authenticated class, S2 unauthenticated class

Technical Specifications

• Z-Wave protocol, 868.4 MHz
• Nominal voltage 230VAC 50Hz
• Maximum current 16A
• Power consumption <2W
• Power regulator
• Hysteresis 0.3°C to 3.0°C (0.5°C standard)
• IP21
• Product size: 45x84x84
• IoT chip type: Z-Wave 800 Chip.
