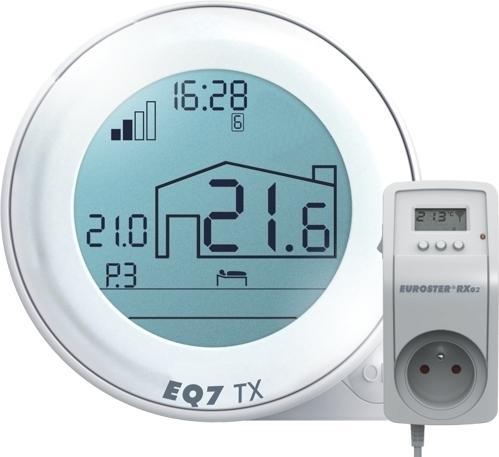

Euroster Temperature controller Q7 TX (EQ7TXRX)

Euroster temperature controller Q7 TX (EQ7TXRX) is designed for unit-controlled heating and air-conditioning systems. It operates on a supply voltage of 3 V using 2 AA alkaline batteries, while the receiver requires 230 V at 50 Hz with a maximum power consumption of 1.3 W. The receiver features a voltage-free relay (SPST) with a maximum load of 5 A at 230 V and 50 Hz. The maximum range is up to 30 m in residential areas.

The temperature measuring range is from -10 °C to +80 °C, with a temperature setting range of +5 °C to +35 °C and an accuracy of 0.1 °C for both setting and display. The optical signal controller includes an illuminated display and an LED diode. The operating temperature range is from +5 °C to +45 °C, and the storage temperature range is from 0 °C to +65 °C. The protection class is IP 20, and it falls under protection class II. The color of the controller is white, with dimensions of 82/82/35.6 mm, and the receiver measures 69/145/71 mm.

Included with the Euroster Q7TX controller are a stand, RXGW receiver, manual, and batteries.
