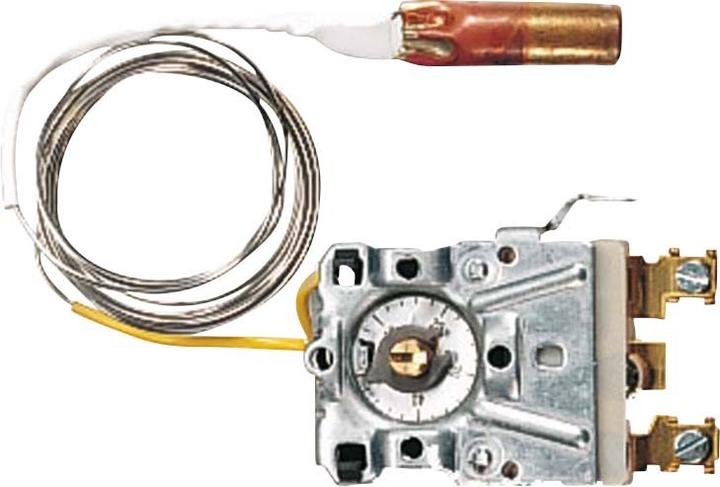

Etherma Temperature switch 230VAC capillary tube 27544
In Detail
Etherma Temperature Limiter KRU
Manufacturer: Etherma
Designation: Temperature limiter 16A, 10-60 degrees
Type: KRU
Suitable as a guardian: yes
Suitable as a 2-point controller: no
Suitable as a limiter: yes
Max. operating temperature: 60 °C
Adjustable switching temperature: 10-60 °C
Temperature switching differential: 1 °C
Device design: Built-in device
Sensor design: Capillary tube
Rated control supply voltage Us at AC 50 Hz: 230 V
Number of contacts as normally open: 1
Design of electrical connection: Flat plug connection
Protection class (IP): IP00
Protection class (NEMA): other
Electronic design: no
Explosion-proof: no
The KRU maximum temperature limiter is a mechanical capillary tube sensor designed to limit floor temperatures for storage and supplementary heating, or under laminate flooring. The KRU is suitable for installation in a flush-mounted box 100 / 100. Switching current: 16 A, temperature range: 10 - 60 °C, fixed sensor cable length: 1.5 m.
