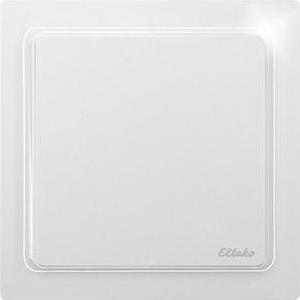

Eltako BTF55E/12V DC-pm Bus temperature sensor surface-mounted

Eltako bus temperature sensor BTF55E/12VDC-pm

Manufacturer: Eltako
Designation: Bus temperature sensor polar white matt
Type: BTF55E/12VDC-pm
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Other
Radio bidirectional: No
Assembly: Basic element with complete housing
Mounting: Surface-mounted
With on-site operation: No
With theft/demounting protection: No
With LED display: No
With display: No
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Finish: Matt
Colour: Other
RAL number (similar): 9010
Transparent: No
External sensor: No
Manual setpoint adjustment: No
Presence push-button: No
Parallel operation possible: Yes
Protection class (IP): Other
With bus coupling: Yes
Power consumption in standby mode: 0.1 W
Min. depth of device box: 50 mm

Eltako bus temperature sensor BTF55E/12VDC-pm: further details
Bus temperature sensor for connection to the RS485 bus gateway BGW14. For individual mounting or mounting in the E-Design55 switch system. Dimensions: 80 x 80 mm, height: 17 mm. Installation depth: 33 mm. Data transmission via the 4-wire bus and power supply with a 12V DC switching power supply unit. Standby loss only 0.1 Watt.
EAN: 4010312326602.
