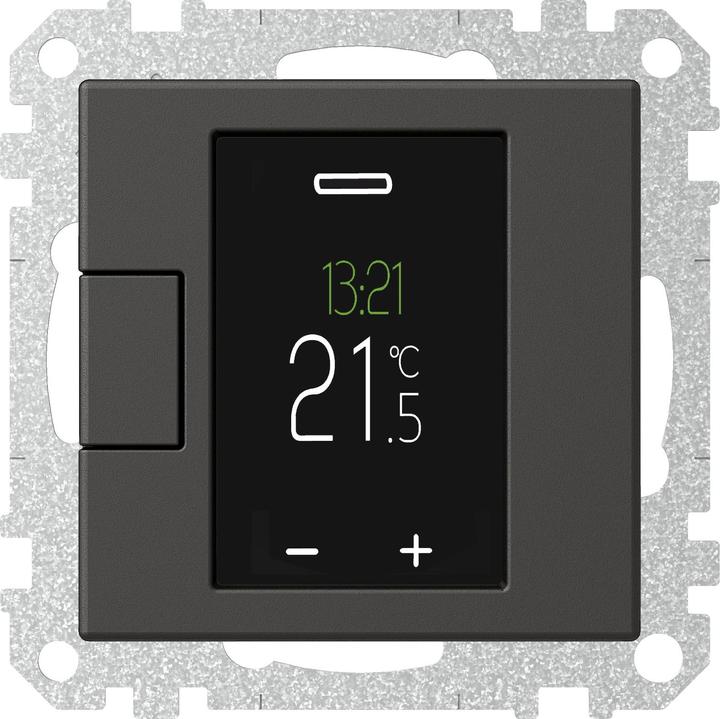

ELSO Uni. temperature controllerOne.

The Schneider Electric Exxact electronic thermostat WDE003478 is equipped with a mounting frame and a central plate in anthracite for use in heating systems. This is a 2-pole electronic thermostat that can be combined with an Exxact frame. The displayed information includes operating mode, operating time counter, temperature in °C, and time. The displayed temperature has a detection accuracy of +/- 0.5 °C. The display resolution is 96 x 96 pixels, the display size is 44 mm, and the display type is an OLED screen. Control is done via a touchscreen. The thermostat features electronic overload and overheating protection for your safety. The rated operating voltage is 230 V, and the rated current is 16 A. The associated fuse has a value of 16. Mounting is done with screws, and the installation box can be flush-mounted. The dimensions are 71 mm in width, 71 mm in height, 51 mm in depth, and a mounting depth of 32 mm. The protection class IP20 ensures reliability and durability, while the impact protection class IK04 protects against impacts of 0.5 joules. Made from PA (Polyamide) 6 GF20 FR, metal, and thermoplastic ABS-UV stabilized material, this electronic thermostat is very robust. Additionally, it is environmentally friendly and a green premium product, as it is mercury-free. It has received the FIMKO, NEMKO, and SEMKO certifications and complies with the standards of EN 60730-2-9.
