Eberle Controls Thermostat

Eberle Controls temperature controller UTR 20

Manufacturer: Eberle Controls
Designation: Temperature controller
Type: UTR 20
Design: On/Off
Type of power supply: 230 V AC
Connection: three/four-wire
With receiver: no
Measuring range: -40 to 20 °C
Sensor external: yes
Thermal feedback: without
Control characteristics: other
Suitable for heating: yes
Number of outputs heating: 1
Suitable for cooling: yes
Number of outputs cooling: 1
Differential value: 0.5 to 5 K
Differential adjustable: yes
Temperature readable: yes
With noise level indicator: no
Transducer/sensor type: Resistance sensor
Mounting type: surface-mounted
With display: no
Operation: rotary
Contact type: change-over contact (NO/NC)
Max. contact voltage: 250 V
Voltage of contacts: 250 V
Max. contact load: 16 A
Protection class (IP): IP65
Explosion-proof: no
Color: gray

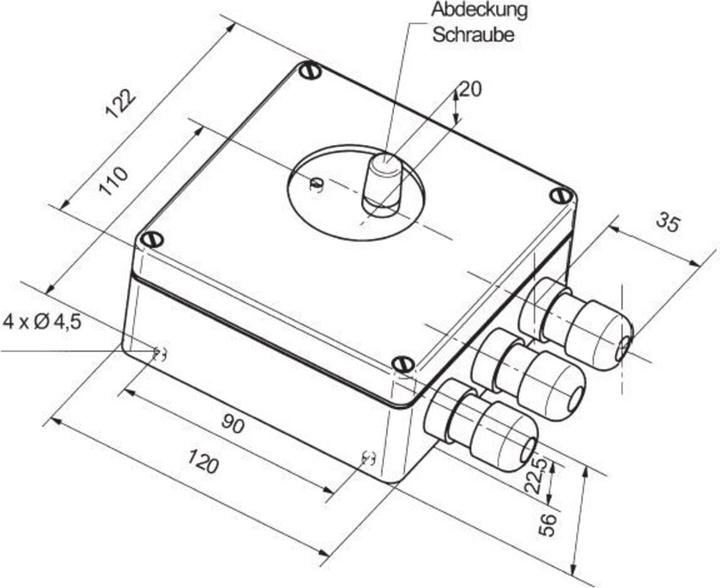

Height: 122 mm
Width: 120 mm
Depth: 56 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

The Eberle Controls temperature controller UTR 20 is a universal temperature controller with a remote sensor (not included, must be ordered separately) for wall mounting, particularly suitable for use outdoors or in damp rooms. The controller can be used as either an outdoor or indoor scale, with the delivery condition set for outdoor use. It features a control lamp, controller requests heat, and sensor break. The adjustable switching temperature difference ranges from ±0.5 K to ±5 K, and temperature setback is possible via an external timer.
EAN: 4017254073830.
