Eberle Controls EBERLE UTE 2500-24-RAL1013-

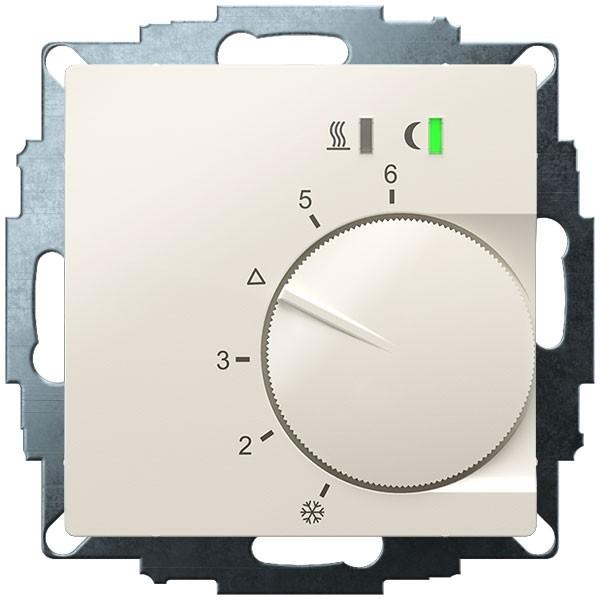

Eberle Controls Flush-mounted room controller 5-30C AC24V UTE 2500-24RA1013G55 Manufacturer :Eberle Controls Designation :Flush-mounted room controller 5-30C AC24V Output Triac Type :UTE 2500-24RA1013G55 Control mode On/Off :no Control mode modulating :yes Communication protocol :other Type of power supply :24 V Connection :other With receiver :no Measuring range :5...30 °C External sensor :no Control characteristic :other Suitable for heating :yes Number of outputs for heating :1 Suitable for cooling :yes Number of outputs for cooling :1 Adjustable differential :no Selector switch for heating and hot water with heating :no Version of sensor/sensor :Resistance sensor Temperature readable :no Relative humidity readable :no With display :no Operation :Rotary Contact version :Normally open (NO) Max. contact voltage :24 V Voltage of contacts :24 V Protection class (IP) :IP30 Explosion-proof :no Colour :white RAL number :1013 Width :55 mm Depth :17 mm Height :55 mm Class of temperature controller :IV Compatible with Apple HomeKit :no Compatible with Google Assistant :no Compatible with Amazon Alexa :no IFTTT support available :no Eberle Controls flush-mounted room controller 5-30C AC24V UTE 2500-24RA1013G55: more details Electronic flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch ranges. Cream white glossy, 55x55 cover with knob. Suitable for water-guided heating systems. Completely noiseless due to the use of a triac switch, in contrast to relays or bimetal. Automatically switchable by a change-over input, therefore usable for heating and cooling. When the clock terminal is switched on, the temperature is reduced by 3.5K and increased by 3.5K in cooling mode. With LED status indicators. Adjustable range restriction in the adjustment knob as a heating cost brake. A captive screw with threaded insert for fastening the housing cover as well as practical plug-in terminals facilitate installation. Mounting in 55 mm flush-mounted box. , EAN: 4017254167416.
