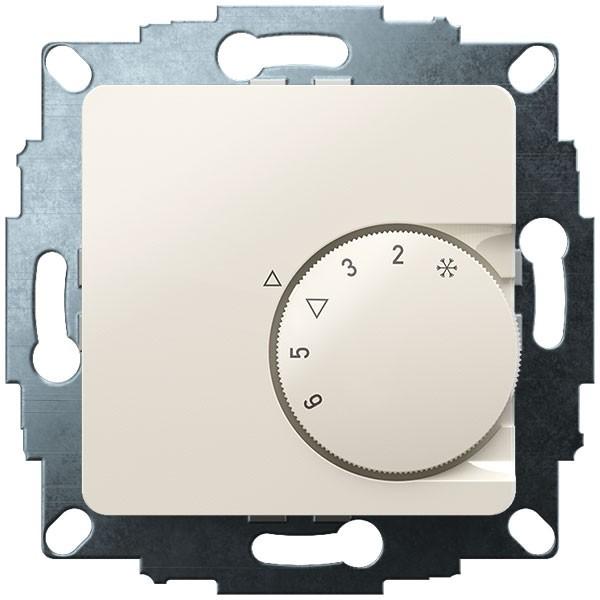

Eberle Controls Eberle UTE 2100-RAL1013-G-50 Flush-mounted room thermostat 5 to 30°C

Eberle Controls flush-mounted room controller 5-30°C AC230V UTE 2100-RAL1013-G50. Manufacturer: Eberle Controls. Designation: Flush-mounted room controller 5-30°C AC230V. Output Triac Type: UTE 2100-RAL1013-G50. Control type On/Off: No. Control type modulating: Yes. Communication protocol: Other. Type of power supply: 230 V. Connection: Three/four-wire. With receiver: No. Measuring range: 5-30 °C. External sensor: No. Control characteristic: Other. Suitable for heating: Yes. Number of outputs heating: 1. Suitable for cooling: No. Differential adjustable: No. Selector switch for heating and hot water with heating: No. Version of sensor/sensor: Resistance sensor. Temperature readable: No. Relative humidity readable: No. With display: No. Operation: Rotary. Contact version: No contact. Max. voltage of contacts: 230 V. Voltage of contacts: 230 V. Protection class (IP): IP30. Explosion-proof: No. Colour: Polar white glossy. RAL number: 1013. Width: 50 mm. Depth: 17 mm. Height: 50 mm. Class of temperature controller: IV. Compatible with Apple HomeKit: No. Compatible with Google Assistant: No. Compatible with Amazon Alexa: No. IFTTT support available: No.

Eberle Controls UP room controller 5-30°C AC230V UTE 2100-RAL1013-G50: More details. Electronic flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices, and hotels. Suitable for all common switch ranges. Cream white glossy, 50x50 cover with knob. Suitable for water-guided heating systems. Completely noiseless due to the use of a triac switch, in contrast to relays or bimetal. Switchable for actuators de-energised open or de-energised closed, therefore usable for heating or cooling. Adjustable range restriction in the setting knob as a heating cost brake. A captive screw with threaded insert for fastening the housing cover as well as practical plug-in terminals facilitate installation. Mounting in 55 mm flush-mounted box. EAN: 4017254167164.
