Eberle Controls Eberle UTE 1001-RAL9016-G-55 Flush-mounted room thermostat 5 to 30°C

Eberle Controls UP Room Controller 5-30 °C AC230V UTE 1001-RAL9016-G55

Manufacturer: Eberle Controls
Designation: UP Room Controller 5-30 °C AC230V
Type of Switch: UTE 1001-RAL9016-G55
Control Type On/Off: yes
Control Type Modulating: yes
Communication Protocol: other
Power Supply Type: 230 V
Connection: other
With Receiver: no
Measuring Range: 5..30 °C
External Sensor: no
With Thermal Feedback: yes
Control Characteristic: other
Suitable for Heating: yes
Number of Heating Outputs: 1
Suitable for Cooling: no
Differential Value: 0.5 K
Adjustable Differential: no
Selector Switch for Heating and Hot Water with Heating: no
Sensor/Transmitter Design: Bimetal
Temperature Readable: no
Relative Humidity Readable: no
With Display: no
Operation: Rotary
Contact Type: Normally Closed (NC)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 10 A
Protection Class (IP): IP30
Explosion-Proof: no
Color: Active White Glossy
RAL Number: 9016
Width: 55 mm
Depth: 16 mm
Height: 55 mm
Class of Temperature Controller: I
Power Consumption in Standby: 0 W
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT Support Available: no

Eberle Controls UP Room Controller 5-30 °C AC230V UTE 1001-RAL9016-G55: Additional Details

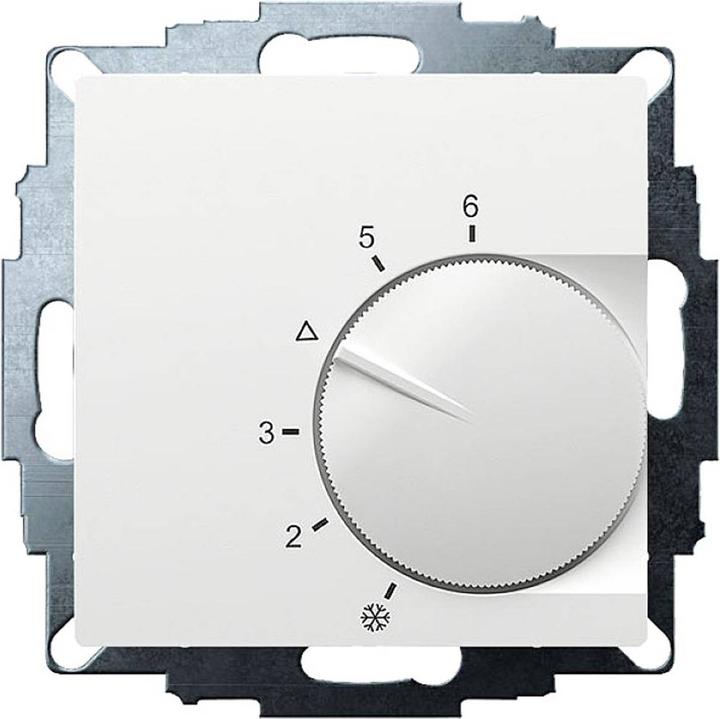

Electromechanical built-in room temperature controller for regulating or monitoring temperatures in living spaces, offices, and hotels. Fits into all common switch programs. Active white glossy, 55x55 cover with knob. Suitable for water-based and electric heating systems. The thermal feedback achieves a very small switching differential. When connecting the clock terminal, the temperature is regulated to about 4 K lower. Adjustable range limitation via the adjustment knob serves as a heating cost brake. A non-removable screw with threaded insert for securing the housing cover, as well as practical plug terminals, facilitate installation. Mounting in a 55 mm flush-mounted box.
