Eberle Controls EBERLE LSW-3/20

Eberle Controls Airflow Monitor LSW 3/20

Manufacturer: Eberle Controls
Designation: Airflow Monitor
Type: LSW 3/20
Measuring Range: 1..20 m/s
Readable: yes
With Display: no
Adjustable Differential: yes
Differential Range/Switching Hysteresis: 0.05 m/s
Number of Switching Levels: 1
Difference Between Switching Steps: 1 m/s
Sensor/Probe Design: thermal
Sensor Material: plastic
Max. Voltage of Contacts: 250 V
Max. Contact Load: 10 A
Protection Class (IP): IP20
Explosion-Proof: no
Insertion Length: 140 mm
Height: 90 mm
Width: 35 mm
Depth: 65 mm

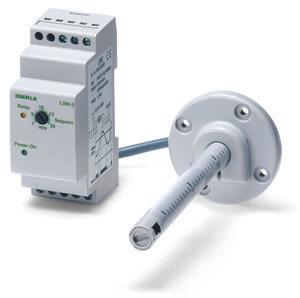

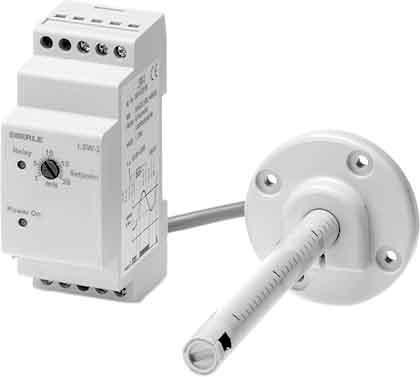

The airflow monitor is used to monitor ventilation, heating, and air conditioning systems, as well as for monitoring in switchgear. The sensor, connected to the measuring relay via a cable, detects the airflow and compares it to the set target value. The target value is set on the front side using a screwdriver. There is an indicator for relay output and operating voltage. The probe comes with a 2.5 m cable, extendable up to 10 m.
