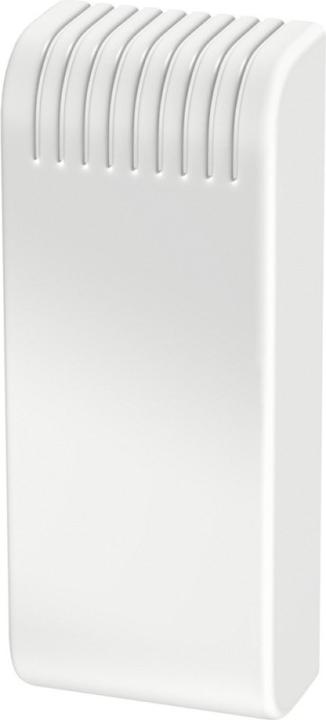

Dimplex WPM Econ PK Passive cooling controller

Glen Dimplex SEE Cooling Controller WPM Econ PK

Manufacturer: Glen Dimplex SEE
Designation: Passive cooling controller
Type: WPM Econ PK
Boiler control: no
Group control: no
Air treatment control: no
Air heater: no
Air cooler: no
Air humidifier: no
Air afterheater: no
Drinking water regulation: no
Switching valve regulation for boiler: no
Split unit control: no
Air curtain control: no
Swimming pool control: no
Heat pump control: yes
Exhaust fan control: no
Number of analog inputs: 8
Number of digital inputs: 8
Number of analog outputs: 2
Number of digital outputs: 8
Supply voltage: 230 V
With display: no
With PC connection: no
Communication bus: RS-485
Communication protocol: Modbus
With outdoor sensor: no
With room sensor: no
With timer: no
Suitable for wall mounting: yes
DIN rail mounting: no
Self-operating: no
Couplable: yes
Protection class (IP): other
Height: 489 mm
Width: 200 mm
Depth: 120 mm

The wall-mounted cooling controller with temperature sensors measures the supply and return temperatures. The passive cooling controller expands the existing heat pump manager to include the cooling mode. Both controllers operate in a network and regulate a combined system for heating and passive cooling with brine/water or water/water heat pumps. The transfer of cooling capacity is carried out via a heat exchanger not included in the delivery, which must be designed based on the cooling capacity to be transferred, the flow rate, and the water quality.
EAN: 4015627360006.
