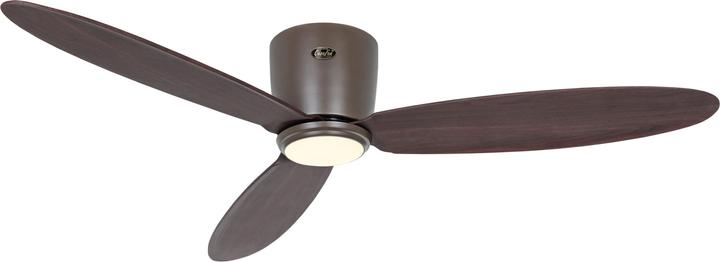

CasaFan Energy-saving ceiling fan Eco Plano LED 132 BZ

Dimensions and technical data

• 100-240 V ~ 50/60 Hz

• Diameter: 132 cm

• Housing colour: bronze

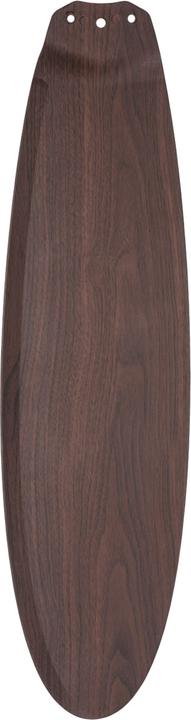

• Wing colour: walnut

• Assembly with 2, 3 or 4 sashes possible (4 sashes included in delivery)

• Integrated lighting: 12 W LED (included in delivery)

• Power consumption motor: 1.1 / 2.3 / 5 / 9.5 / 16.6 / 28 W

• Revolutions per minute: 30 / 63 / 98 / 131 / 165 / 207

• Max. air flow rate: 126.6 m³/min

• Service ratio: 4.5 (m³/min)/W

• Max. sound pressure level Lp-3m: 30.6 dB(A)

• Max. sound power level Lw: 51.1 dB(A)

• Distance ceiling - sash: 16 cm

• Total height: 22.5 cm

• Diameter motor housing: 19 cm

• Mounting not possible on sloping ceilings

• Forward and reverse operation (summer and winter operation)

• Remote control included: 6 speeds / off, light on / off / dim, change of running direction, timer

• Weight: 6.5 kg

Data illuminant

• LED module

• Power: 12 W

• Luminous flux: 1800 lm

• Colour temperature: 3000 K (warm white)

• Colour rendering index: 80

• Lifetime: 30000 h

• Beam angle: 120

• Dimmable

• Energy efficiency class: D

• Individual LEDs cannot be replaced in the luminaire. Replacement LED modules available.
