Product details
Dimensions and technical data
- 100-240 V ~ 50/60 Hz
- Diameter: 152 cm
- Housing colour: basalt grey

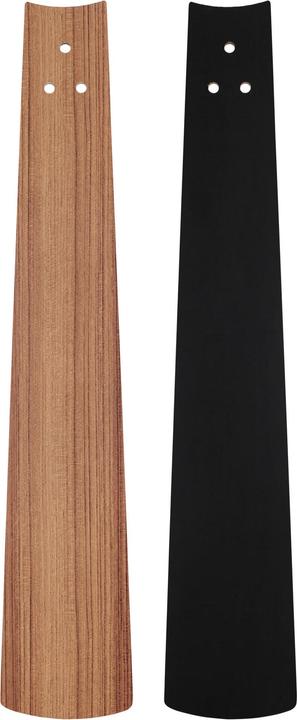

- Sash colour: black / teak (reversible sash, can be mounted on both sides)
- Installation with 2, 3 or 4 panels possible (4 panels included in the scope of delivery)
- Motor power consumption: 2.5 / 3.8 / 6.5 / 11.5 / 18.5 / 27 W
- Revolutions per minute: 30 / 53 / 74 / 97 / 129 / 146
- Max. air flow rate: 190.2 m³/min
- Service ratio: 7 (m³/min)/W
- max. sound pressure level Lp-3m: 26.6 dB(A)
- max. sound power level Lw: 47.1 dB(A)
- Distance ceiling - sash: 36 cm (27 cm with short ceiling rod)
- Total height: 38 cm (29 cm with short ceiling rod)
- Canopy diameter: 13 cm
- Diameter of motor housing: 16.5 cm
- max. ceiling slope: 23°
- Forward and reverse operation (summer and winter operation)

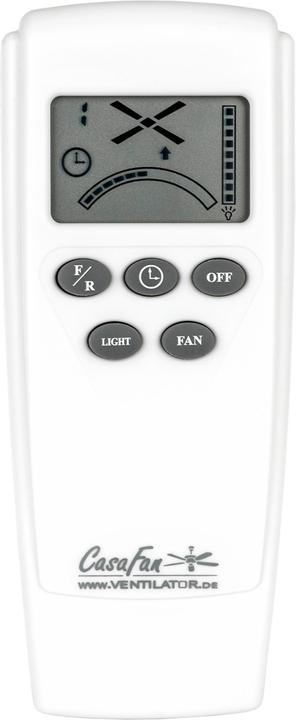

- including remote control: 6 speeds / off, change of direction, timer
- Smart Home remote control also offers all the functions of the remote control via Smart Life app (Siri, Alexa, Google Home, IFTTT)
- Weight: 6.1 kg.
