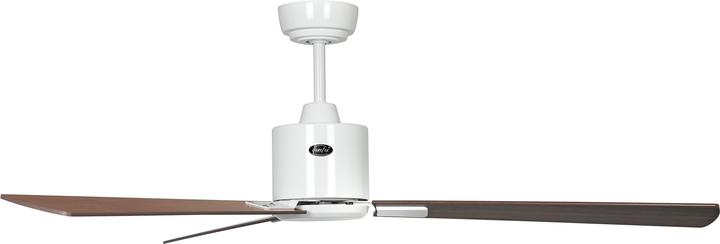

CasaFan Ceiling fan Eco Neo III WiFi 132 WE NB-KI

Dimensions and technical data

• 100-240 V ~ 50/60 Hz

• Diameter: 132 cm

• Housing colour: white

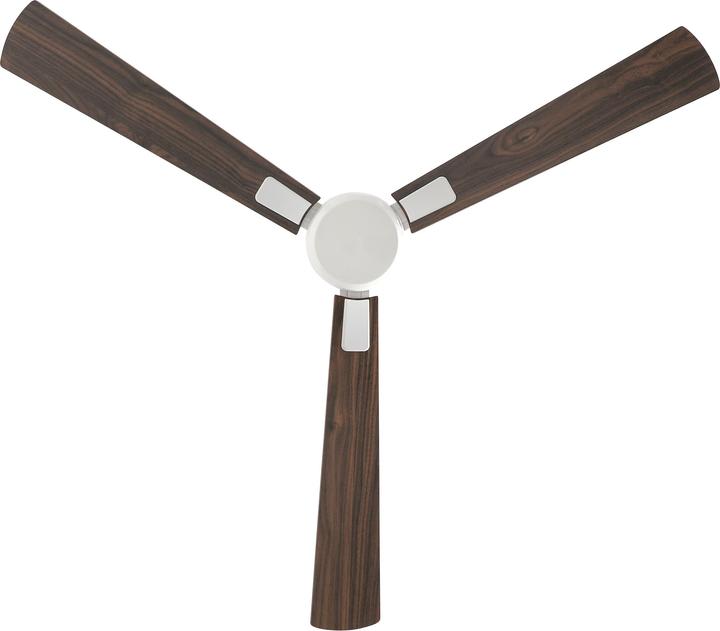

• Sash colour: walnut / cherry (reversible sash, can be mounted on both sides)

• Installation with 2, 3 or 4 panels possible (4 panels included in the scope of delivery)

• Motor power consumption: 2.3 / 3.5 / 6.3 / 11.2 / 18.3 / 27 W

• Revolutions per minute: 30 / 65 / 90 / 123 / 155 / 185

• Max. air flow rate: 159.6 m³/min

• Service ratio: 5.9 (m³/min)/W

• Max. sound pressure level Lp-3m: 31.3 dB(A)

• Max. sound power level Lw: 51.8 dB(A)

• Distance ceiling - sash: 36 cm (27 cm with short ceiling rod)

• Total height: 38 cm (29 cm with short ceiling rod)

• Canopy diameter: 13 cm

• Diameter of motor housing: 16.5 cm

• Max. ceiling slope: 23°

• Forward and reverse operation (summer and winter operation)

• Including remote control: 6 speeds / off, change of direction, timer

• Smart Home remote control also offers all the functions of the remote control via Smart Life app (Siri, Alexa, Google Home, IFTTT)

• Weight: 5.9 kg.
