Busch-Jaeger Room temperature controller

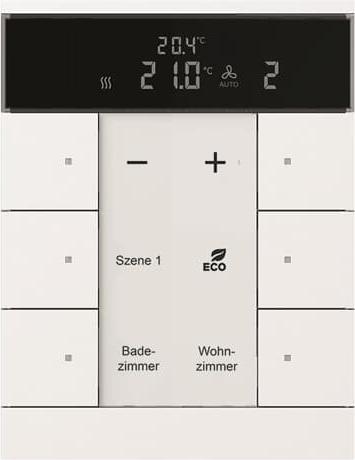

Busch-Jaeger room thermostat SBR/U6.0.11-84

Manufacturer: Busch-Jaeger
Designation: Room thermostat 6-f. with control function
Type: SBR/U6.0.11-84
Bus system KNX: Yes
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Other
Assembly: Control element
Mounting type: Flush-mounted
With theft/dismantling protection: Yes
With LED display: Yes
With display: Yes
Material: Plastic
Material grade: Thermoplastic
Surface protection: Untreated
Surface finish: Glossy
Color: Studio white
RAL number (similar): 9016
External sensor: No
Manual setpoint adjustment: Yes
Presence pushbutton: Yes
Parallel operation possible: Yes
Protection class (IP): IP20
With bus coupling: Yes
Temperature controller class: I
Min. depth of device box: 33 mm

Busch-Jaeger room temperature controller SBR/U6.0.11-84: further details
Free configurable multifunction control element with integrated KNX bus coupling unit and labeling field. Supports KNX functions by innovative color concept (yellow=lighting, blue=blind, orange=RTR, magenta=scene, and white=neutral/no function assignment) or standard lighting red/green. Pushbutton function includes switching, dimming, shutter, send value, light scenes, etc. Suitable for controlling heating, ventilation, and FanCoil actuators. Master/slave operation with base load operation. The fan stage can be switched manually or to automatic mode. Class of temperature controller: 1. Contribution to space heating energy efficiency: 1.0%. Number of bus participants: 1.
