Berker PID Temp Controller, 9500P, 48x48

Berker Temperature Controller sw/gl 20262045

Manufacturer: Berker
Designation: Temperature Controller sw/gl
Switch/Central Piece Type: 20262045
Execution: On/Off
Power Supply Type: 230 V AC
Connection: 2-Wire
With Receiver: No
Measuring Range: 0..40 °C
External Sensor: No
Thermal Feedback: Series
Control Characteristic: Other
Suitable for Heating: Yes
Number of Heating Outputs: 1
Suitable for Cooling: Yes
Number of Cooling Outputs: 1
Differential Value: 0.5 K
Adjustable Differential: No
Temperature Readable: No
With Noise Level Indicator: No
Sensor/Transducer Type: Bimetal
Mounting Type: Flush-mounted
With Display: No
Operation: Rotary
Concealed Operation: No
With Drinking Water Control: No
Contact Type: Changeover (NO/NC)
Max. Voltage of Contacts: 230 V
Max. Contact Load: 10 A
Protection Class (IP): IP20
Protection Class (NEMA): 1
Explosion-Proof: No
Color: Black
RAL Number: 9005
Height: 71 mm
Width: 71 mm
Depth: 45.6 mm
Class of Temperature Controller: I
Power Consumption in Standby: 0 W
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

Berker Temperature Controller sw/gl 20262045: Additional Details

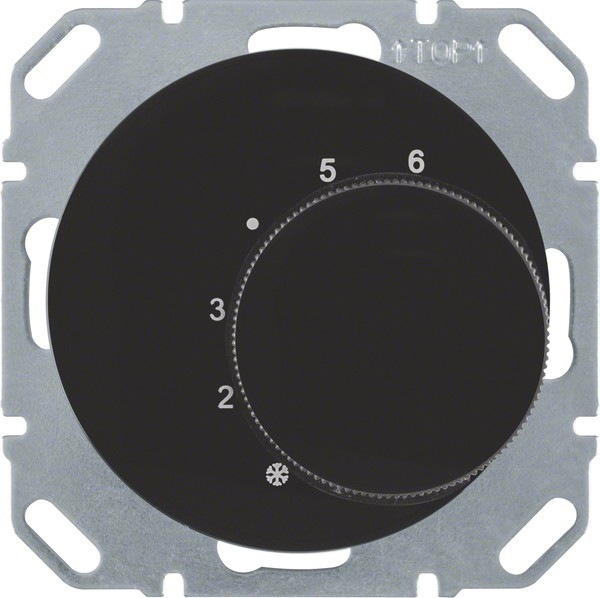

Temperature controller with changeover switch and central piece R.1/R.3 in black, glossy finish. Room temperature controller with changeover switch and central piece with printing, regulation knob with temperature range limitation. Suitable for heating or cooling operation, e.g., for actuator closed when de-energized, with thermal feedback, without spreading claws, with plug terminals, neutral conductor required. When the set temperature is reached, the contact switches. Flush-mounted installation, standard program. Material: Plastic, thermoplastic, shatterproof, halogen-free.
