Berker 75643165

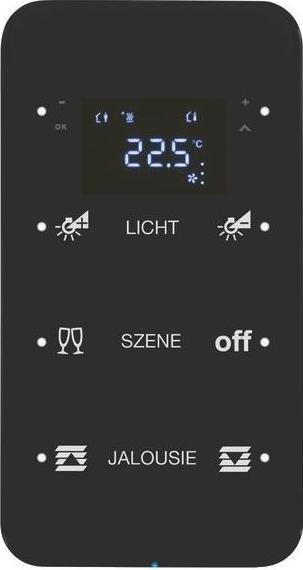

Touch sensor 3-fold with temperature controller R.1, configured in black. The touch sensor allows for individual labeling via an internet configuration software. It features a surrounding bevel, rounded corners, and no visible fastening elements. With six control surfaces and an LED display that shows symbols for operating mode, controller lock, room and outside temperature, as well as time (timer required). Additionally, there are two display sensor surfaces, a blue operating LED, and six white status LEDs.

The flush-mounted installation is designed for vertical mounting and includes a disassembly tool as well as an integrated bus coupler with connection via a terminal block. The display menu is parameterizable for operation.

The touch sensor enables the control of functions both room-specific and across rooms. It is suitable for individual room temperature control and is activated by touching the glass panel (capacitive detection). The flat design ensures high switching reliability, as the circuit paths are directly applied to the glass panel.

It can be installed in a 2-fold flush-mounted box and supports switching, push-button, dimming, blind, and room temperature controller functions. The value transmitter for dimming, position, brightness, and temperature values can be parameterized in 1 and 2 bytes. The operation can be configured for single and dual surfaces, and the sensor surfaces can be locked via objects.

The controller operating modes include comfort, standby, night, and frost/heat protection modes. It is suitable for heating and/or cooling operation with or without an additional stage, and the control parameters for heating or cooling bodies are preset. Temperature measurement is carried out via internal and/or external, connectable sensors with averaging. Additionally, there are reporting objects for heating and cooling, a valve protection function, an object for the controller status, and a button lock function.
