ALRE Univers.capillary thermostat

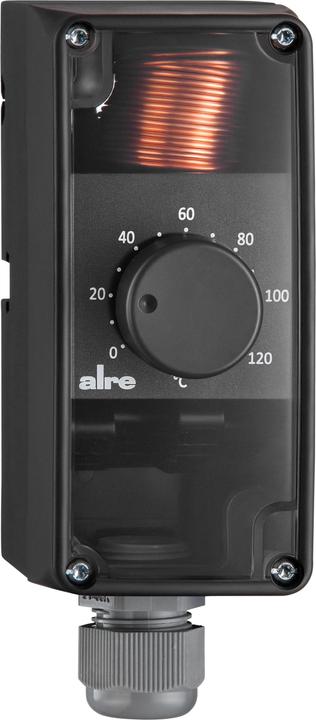

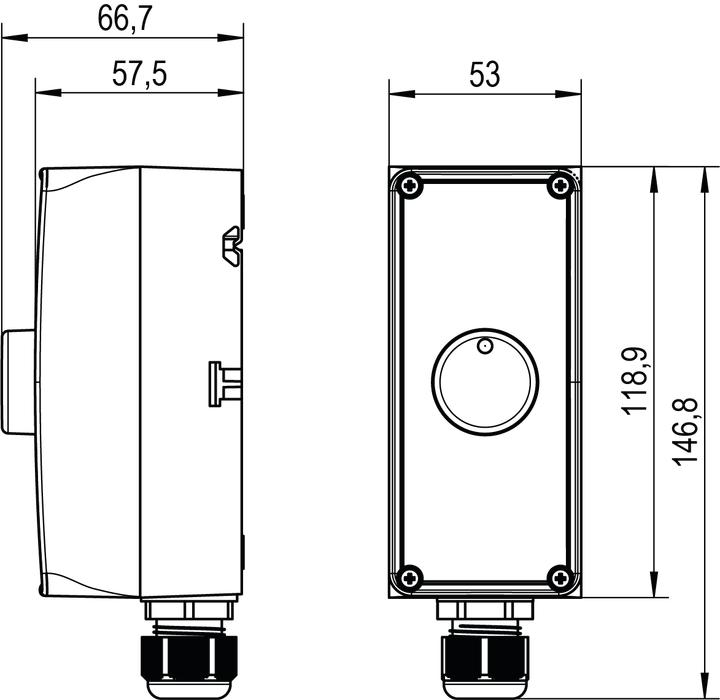

Alre-it Univers.Capillary Thermostat RTKSA-000.200 Manufacturer :Alre-it Designation :Univers.Capillary Thermostat 0-120°C TR IP40 Type :RTKSA-000.200 Measuring range :0..120 °C Differential adjustable :no Differential value :3 K Type of sensor/sensor :capillary Max. medium temperature (continuous operation) :138 °C Max. medium temperature (continuous operation) :138 °C Max. contact voltage :230 V Voltage of contacts :230 V Max. Max. contact load :16 A Contact interlock :no Protection class (IP) :IP40 Explosion-proof :no Height :146.8 mm Width :53 mm Depth :66.7 mm Alre-it Universal Capillary Thermostat RTKSA-000.200: more details This series of devices has been specially developed for use in heating technology in boiler systems or storage tanks, district heating transfer stations and heat transfer systems, in ventilation technology as supply air monitors or as limiters of electric heating registers, as well as for controlling and monitoring temperatures on pipes and vessels. Immersion sleeves, protective coils and fixing set are not included in the scope of delivery. The JZ-29 fixing set must be used in conjunction with immersion sleeves or protection coils. When used as a pipe-mounted controller, the JZ-31 fixing set must be used. , EAN: 4050528074621.
