ALRE Universal thermostat

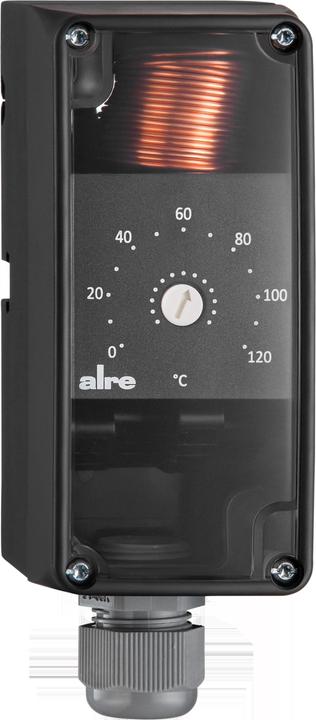

Alre-it Universal Thermostat RTKSA-001.200

Manufacturer: Alre-it
Designation: Universal Thermostat
Hysteresis: 3 K
Type: RTKSA-001.200
Measuring Range: 0..120 °C
Adjustable Differential: no
Differential Value: 3 K
Sensor/Probe Design: capillary
Max. Medium Temperature (Continuous Operation): 138 °C
Max. Voltage of Contacts: 230 V
Max. Contact Load: 16 A
Contact Locking: no
Protection Class (IP): IP40
Explosion Protected: no

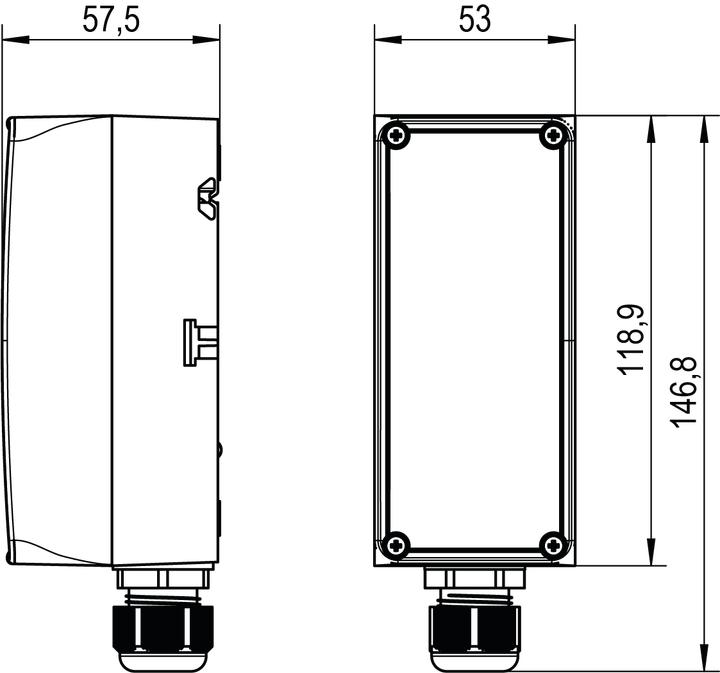

Height: 146.8 mm
Width: 53 mm
Depth: 57.5 mm

Alre-it Universal Thermostat RTKSA-001.200: additional details
This device series has been specifically designed for use in heating technology in boiler systems or storage tanks, district heating transfer stations, and heat transfer systems, in ventilation technology as supply air monitoring or as a limiter for electric heating registers, as well as for controlling and monitoring temperatures in pipelines and containers. Immersion sleeves, protective coils, and mounting sets are not included in the delivery. In conjunction with immersion sleeves or protective coils, the mounting set JZ-29 should be used. When used as a contact controller (pipe mounting), the mounting set JZ-31 should be used.
