ALRE Stellantrieb,stroml.gesch.

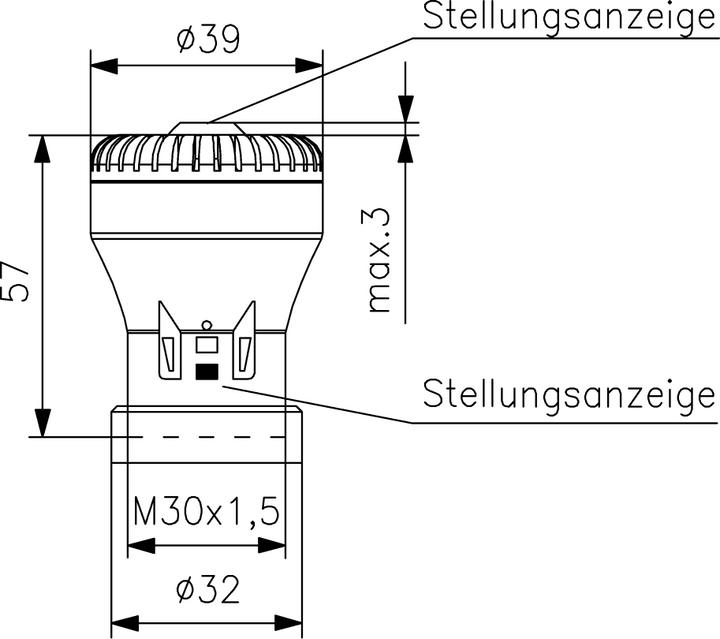

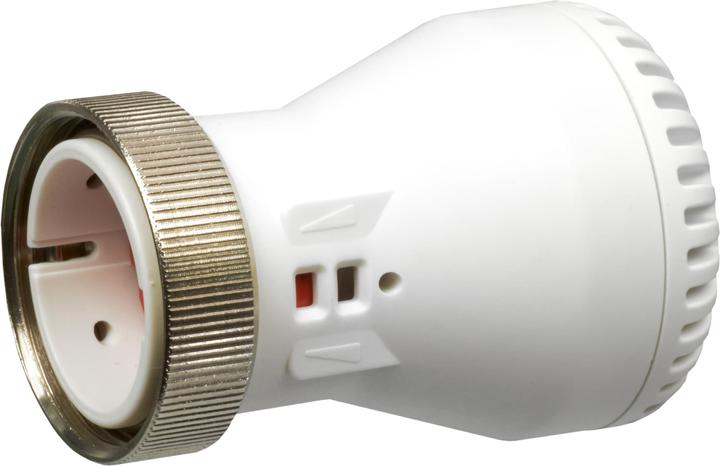

Alre-it actuator, current-linked. ZBOOA-010.100 Manufacturer :Alre-it Designation :Actuator, current-linked electrothermal 230 V Type :ZBOOA-010.100 Version :filled with wax Connection to valve :M30 x 1.5 Mains voltage :230 V AC Function :Normally closed (NC) With level indicator :yes Cable length :0.8 m Stroke length :3 mm Colour :white Ambient temperature :0..50 °C Rated power :3 VA Max. electrical power consumption :70 VA Protection class (IP) :IP42 Length :57 mm Width :39 mm Height :57 mm Alre-it actuator,current-limited. ZBOOA-010.100: more details Electro-thermal valve actuator for heating, ventilation and air-conditioning systems. The actuator is very space-saving due to its compact design. The tapered design, especially in the mounting area of the nut, makes installation easy to handle. The fastening cable is not located in the area of the fastening nut. This reduces the likelihood of contact with devices carrying heating water. Since the fastening nut allows the valve to be screwed continuously onto the thread, in contrast to bayonet and snap couplings, the valve can be opened in a de-energised state by turning the nut back by two to three thread turns. Leaking water is drained off via a drainage system. A special design has made it possible to dispense with seals. The current valve position is displayed at 2 positions (top and side). Due to their fastening of M 30 x 1.5 and their characteristic (normally closed), the actuators are suitable for the following valve and distributor brands, among others: Beulco, Empur, Heimeier, Kamo, Oventrop, Purmo, SBK, SKV, Strawa, Taconova, Watts. , EAN: 4050528046604.
