ALRE RTKSA-204.100

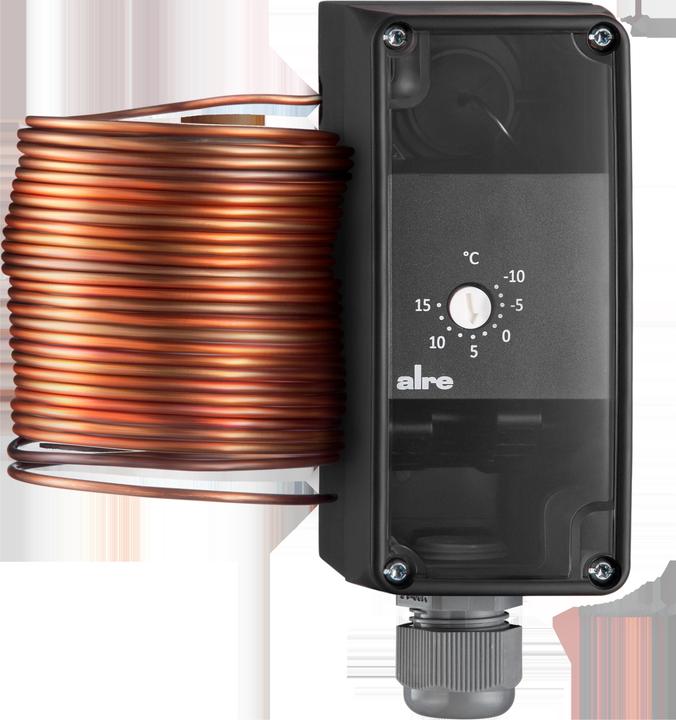

Alre-it Frost Protection Thermostat RTKSA-204.100

Manufacturer: Alre-it
Designation: Frost Protection Thermostat STW, 3m, IP40
Type: RTKSA-204.100
Measuring Range: -10..15 °C
Adjustable Switching Differential: no
Differential Range/Switching Hysteresis: 1.5 K
Capillary Length: 3 m
Max. Medium Temperature (Continuous Operation): 120 °C
Max. Voltage of Contacts: 230 V
Max. Contact Load: 16 A
Contact Locking: no
Protection Class (IP): IP40
Explosion-Proof: no
Height: 146.8 mm
Width: 57.5 mm
Depth: 53 mm

Alre-it Frost Protection Thermostat RTKSA-204.100: Additional Details
The RTKSA frost protection controllers are specifically designed for air or water-side frost protection of hot water heating registers and heat exchangers in ventilation, heating, or air conditioning systems. The capillary is active along its entire length. The device activates when the minimum activation length of the capillary (15 cm) reaches the set scale value. In the event of a sensor break, contacts 1-2 remain permanently open, and contacts 1-4 remain permanently closed. Unlocking is no longer possible. Note: Mounting brackets, immersion sleeves, and protective coils are not included and must be ordered separately.

Air-side Application: For frost protection of heating registers, the capillary is secured in front of the heating register to be protected using mounting brackets. For this purpose, the mounting brackets JZ-05/6 M (metal) or JZ-05/6 K (plastic) should be used.
EAN: 4050528074898.
