ALRE RTKSA-010.200

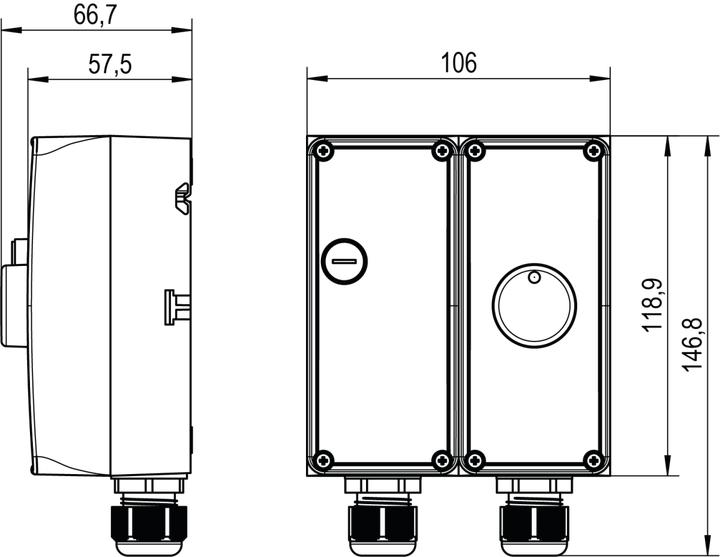

Alre-it Universal thermostat RTKSA-010.200 Manufacturer :Alre-it Designation :Universal thermostat TR, STB Type :RTKSA-010.200 Measuring range :0..120 °C Differential adjustable :no Differential value :3 K Design transducer/sensor :capillary Max. medium temperature (continuous operation) :138 °C Medium temperature (continuous operation) :138 °C Max. contact voltage Voltage of contacts :230 V Max. Max. contact load :16 A Contact interlock :yes Protection class (IP) :IP40 Explosion-proof :no Height :146.8 mm Width :106 mm Depth :66.7 mm Alre-it Universal Thermostat RTKSA-010.200: more details This series of devices was specially developed for use in heating technology in boiler systems or storage tanks, district heating transfer stations and heat transfer systems, in ventilation technology as supply air monitors or as limiters for electric heating registers. Immersion sleeves / protection coils are not included in the scope of delivery. The JZ-30 accessory must be used in conjunction with immersion sleeves or protection coils. The control range / hysteresis is 0¿120°C / 3K for the temperature controller and 70¿130°C / -10¿-15K for the safety temperature limiter. , EAN: 4050528074720.
