ALRE RTBSB-001.910/2 Room temp. mech.AP

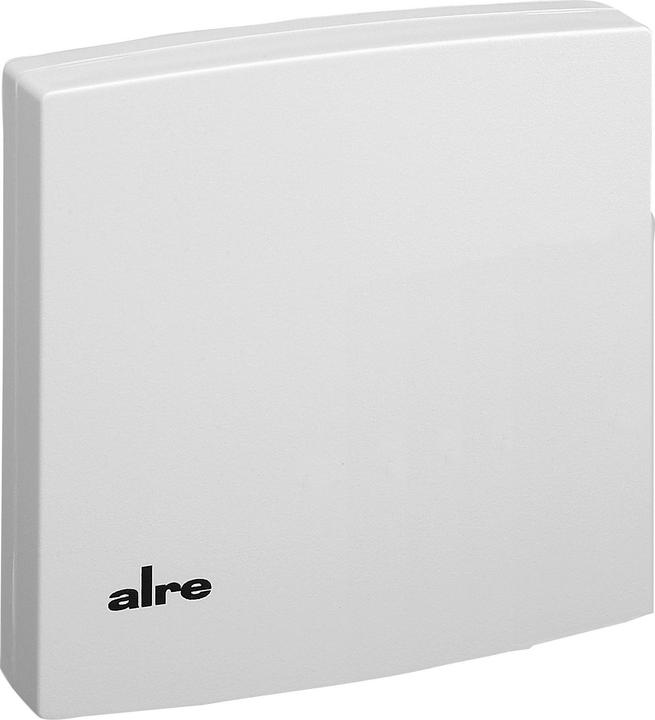

Alre-it Room Temperature Controller AP RTBSB-001.910/2

Manufacturer: Alre-it
Designation: Room temperature controller AP 5-30 °C, switching, 24 V, 1 A
Type: RTBSB-001.910/2
Design: On/Off
Power supply type: 24 V AC
Connection: Other
With receiver: No
Measuring range: 5..30 °C
External sensor: No
Thermal feedback: Parallel
Control characteristic: P
Suitable for heating: Yes
Number of heating outputs: 1
Suitable for cooling: Yes
Number of cooling outputs: 1
Differential value: 0.5 K
Adjustable differential: No
Temperature readable: No
Sensor/Probe design: Bimetal
Mounting type: Surface-mounted
With display: No
Operation: Rotary
Concealed operation: Yes
With drinking water control: No
Contact type: Changeover (NO/NC)
Max. contact voltage: 24 V
Max. contact load: 1 A
Protection class (IP): IP30
Explosion-proof: No
Color: White
RAL number: 9010
Height: 83.4 mm
Width: 78.3 mm
Depth: 25.5 mm
Class of temperature controller: I

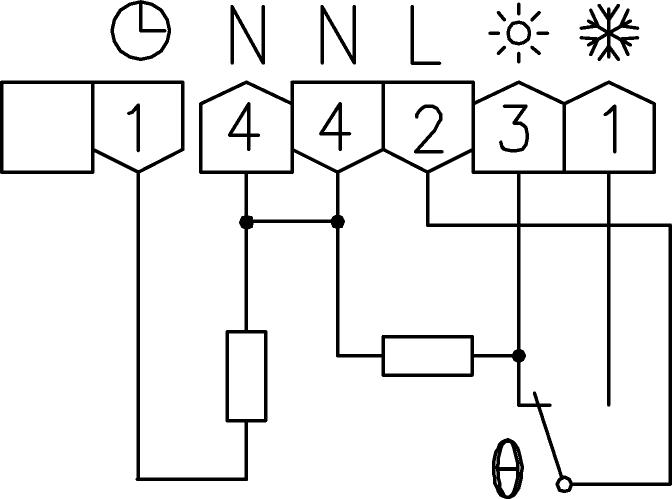

The Alre-it Room Temperature Controller AP RTBSB-001.910/2 is an electromechanical room temperature controller in a surface-mounted housing designed for regulating or monitoring temperatures in offices, living spaces, and hotels. The controller features an internal setpoint adjustment and is particularly suitable for installation in government buildings, banks, schools, kindergartens, museums, and similar facilities where unauthorized adjustments to the setpoint should be prevented. The thermal feedback ensures a very precise switching differential. The adjustment range can be modified using the range narrowing located under the adjustment knob. When connecting the ECO terminal with 24 VAC (e.g., with a timer or programmable timer), the temperature is regulated to approximately 4 K lower.
